Positive Crankcase Ventilation Tube Replacement - Front

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

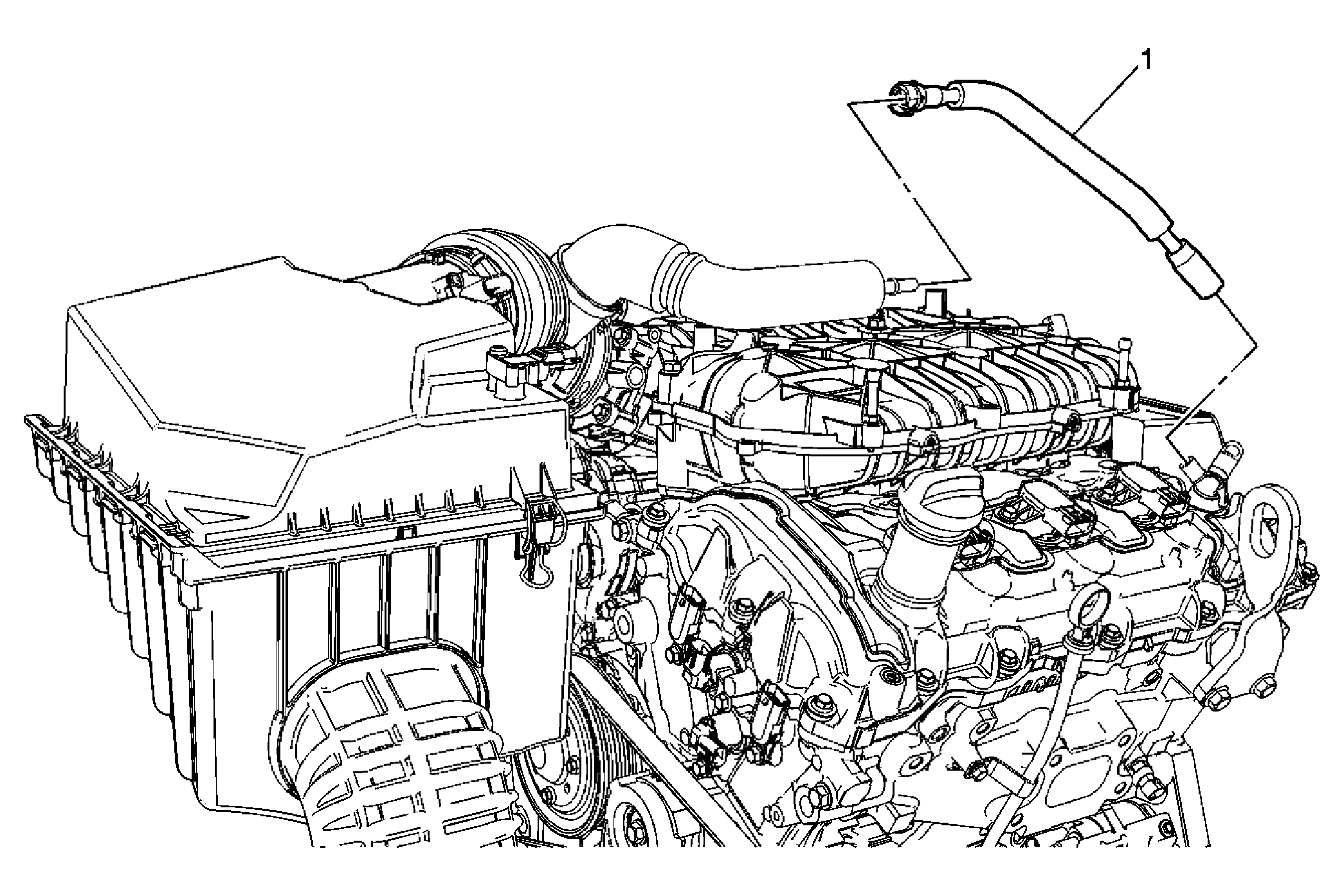

Fig 1: Identifying Positive Crankcase Ventilation Tube - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Positive Crankcase Ventilation Tube
