Positive Crankcase Ventilation Tube Replacement - Dipstick to Air Outlet Duct

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

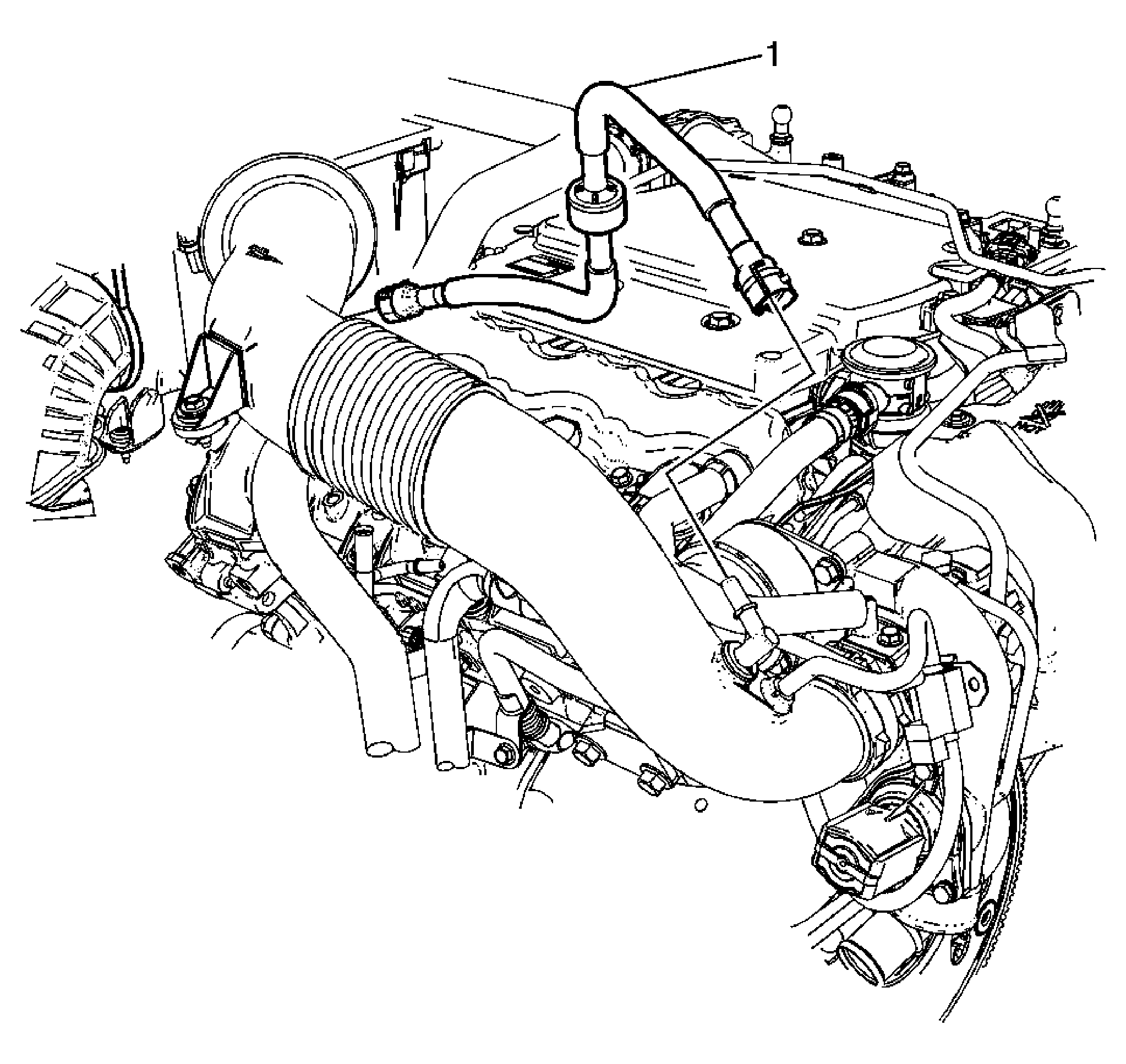

Fig 1: Identifying PCV Tube

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Positive Crankcase Ventilation Tube Procedure Release both tabs in order to remove the tube. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure:
Remove intake manifold cover. Refer to Intake Manifold Cover Replacement .

Positive Crankcase Ventilation Tube

Procedure

Release both tabs in order to remove the tube.
Transfer parts as necessary.
