Radiator Surge Tank Inlet Hose Replacement (LAU)
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

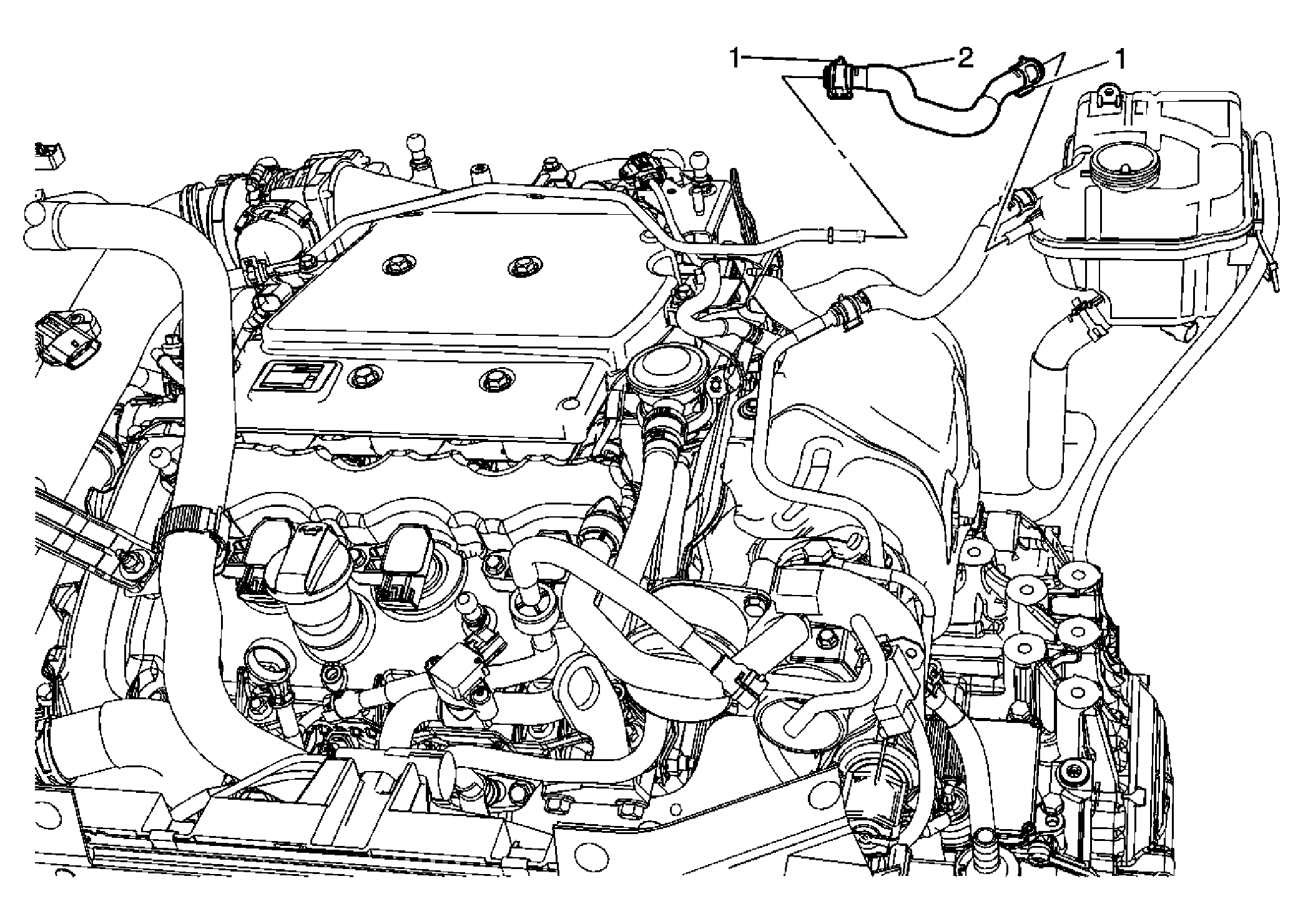

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Partially drain the coolant. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) . |
|
| 1 | Radiator Surge Tank Inlet Hose Clamp (Qty: 2) Procedure: Disengage tension on the radiator surge tank inlet hose clamps using BO-38185: Hose Clamp Pliers. Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools |
| 2 | Radiator Surge Tank Inlet Hose |
