X350

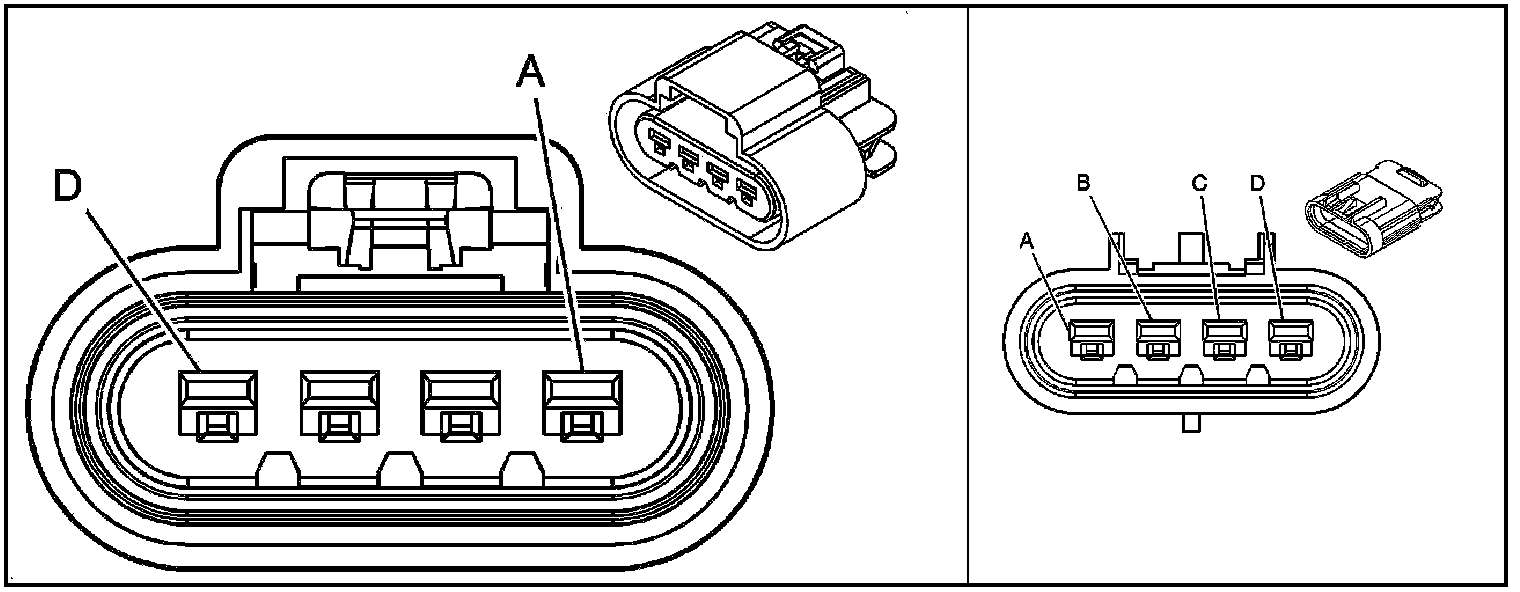

Inline Harness Connector End Views

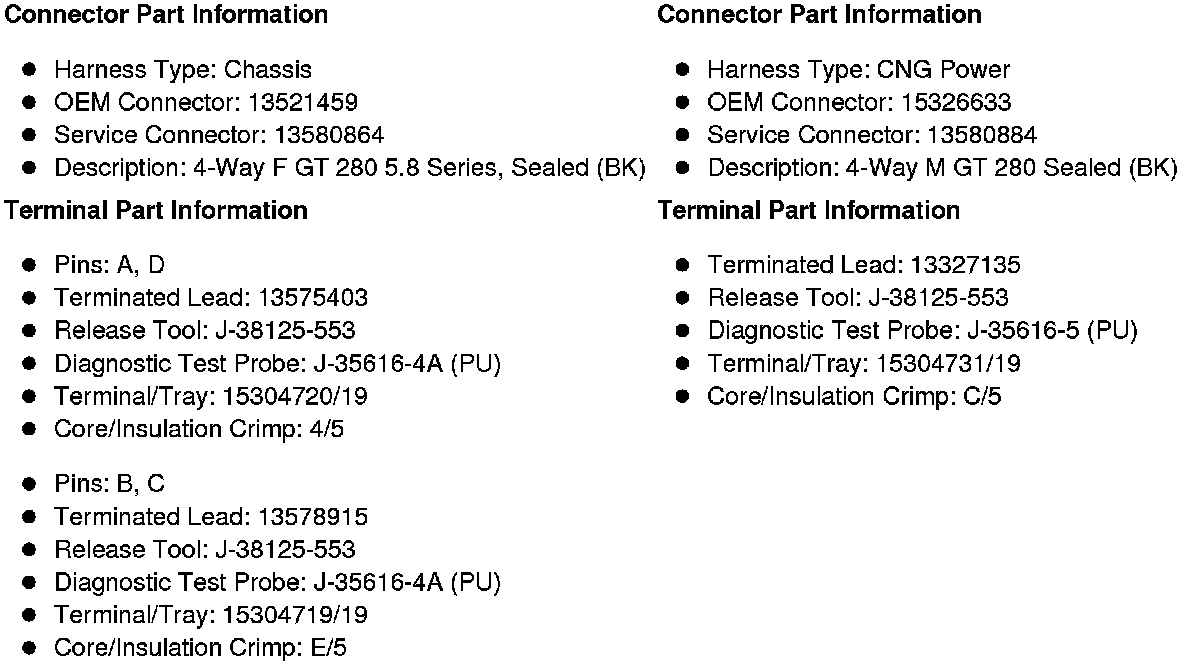

X350 Chassis Harness to CNG Power Harness (FHZ)
















Inline Harness Connector End Views

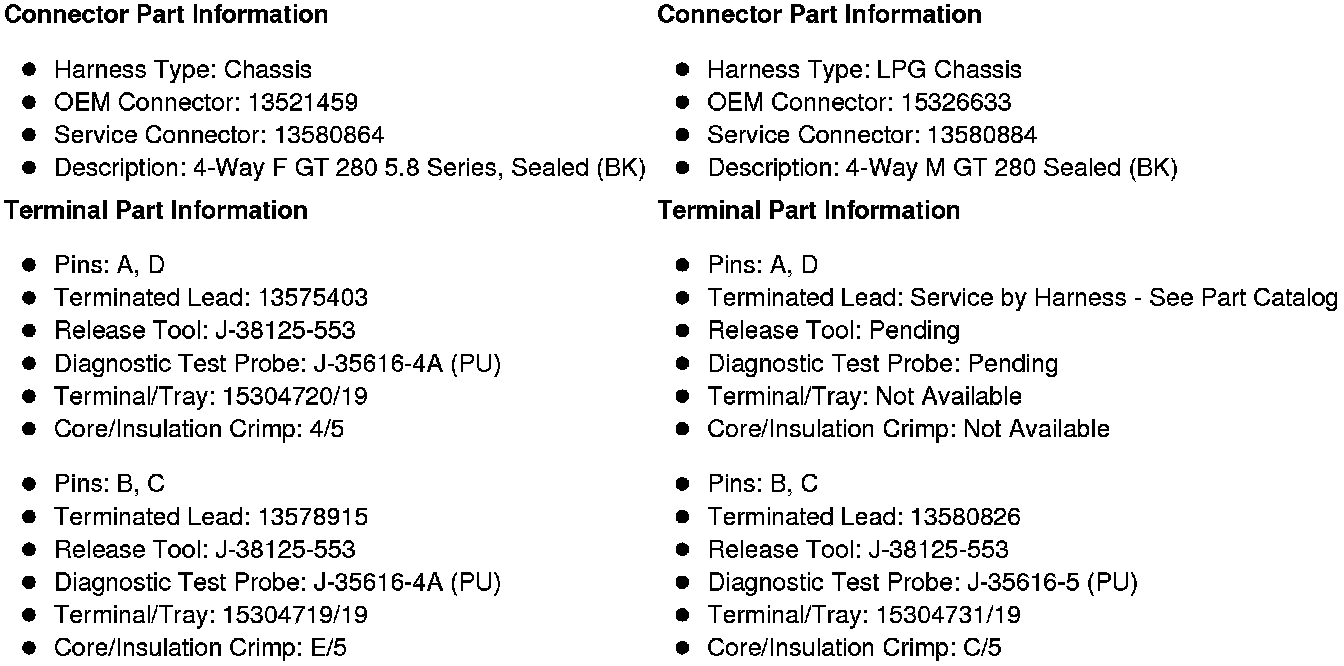

X350 Chassis Harness to LPG Chassis Harness (KO7 with UFM)
















Inline Harness Connector End Views

X350 Chassis Harness to LPG Harness (KO7 with UFP)
