Fill Plug Replacement




Fill Plug Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

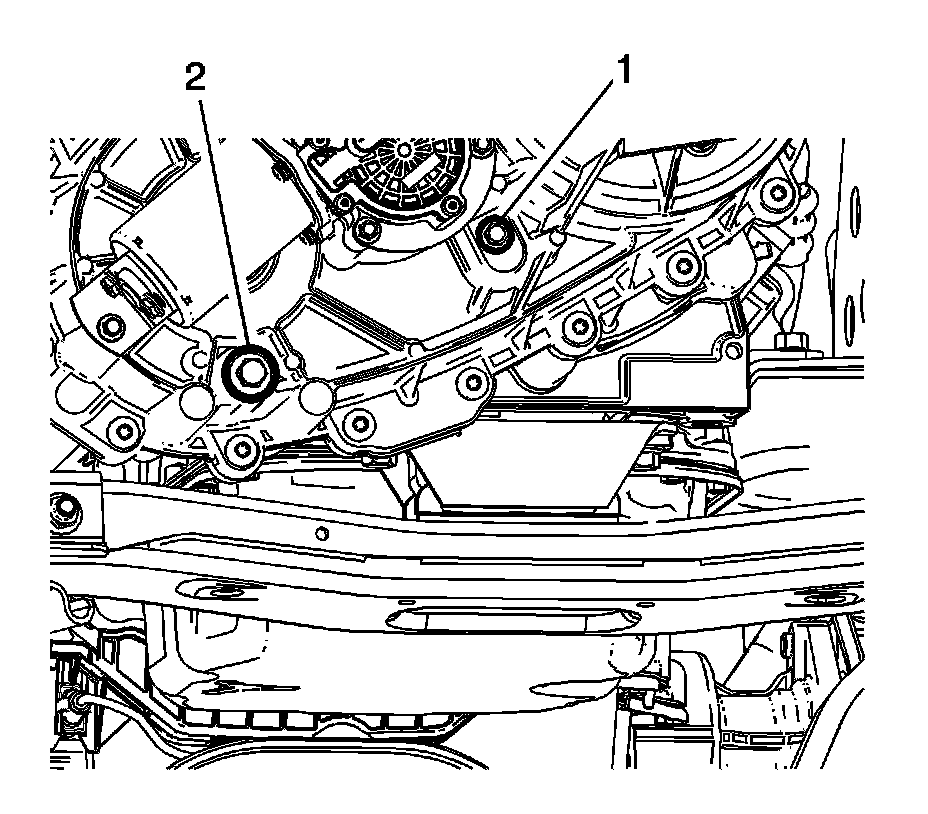

2. Remove the fill plug (1).

Installation Procedure




1. Install the fill plug (1).

2. Lower the vehicle.
