Reaction Sun Gear Shell, Reaction Carrier Shaft, and Input Internal Gear Assembly Installation

Reaction Sun Gear Shell, Reaction Carrier Shaft, and Input Internal Gear Assembly Installation

Special Tools

J 36850 - Transjel Lubricant

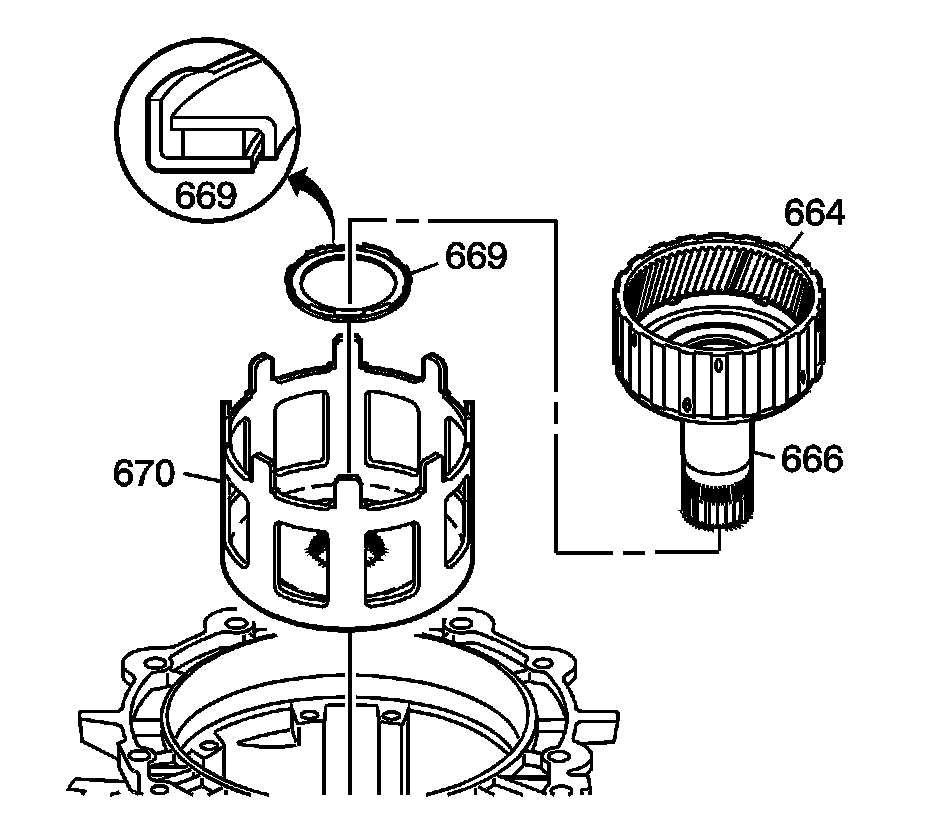

1. Install the reaction sun shell (670) into the reaction sun gear.

2. Install the thrust bearing (669) using J 36850 - transjel lubricant onto the reaction carrier shaft, tangs up, toward the shaft.

3. Install the input internal gear (664) and reaction carrier shaft (666) assembly into the sun gear shell. Index the reaction carrier shaft spline into the reaction carrier.
