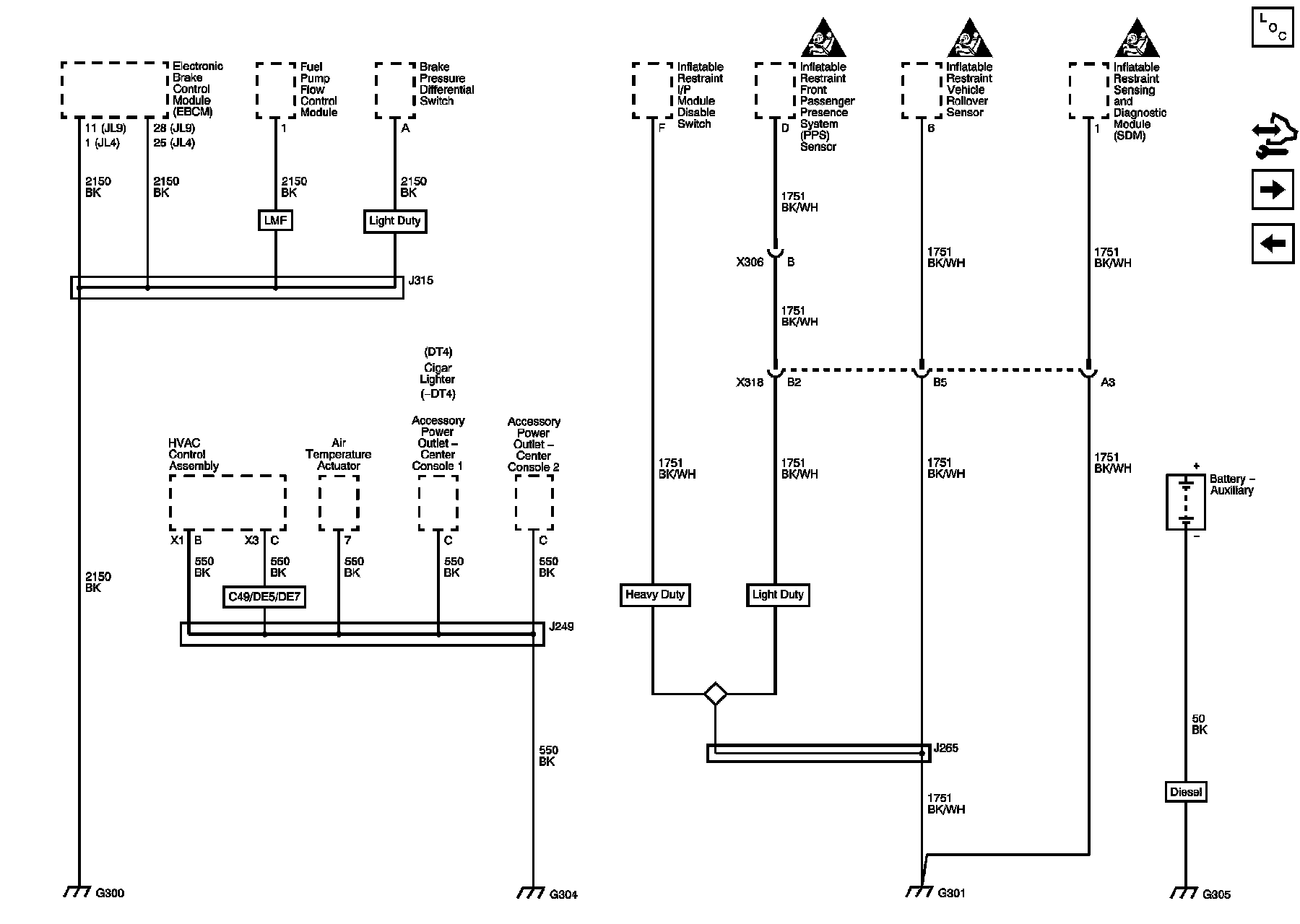

Home >> Chevrolet >> 2013 >> Express 1500 AWD V8-5.3L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Schematics >> G305
