X101
X101

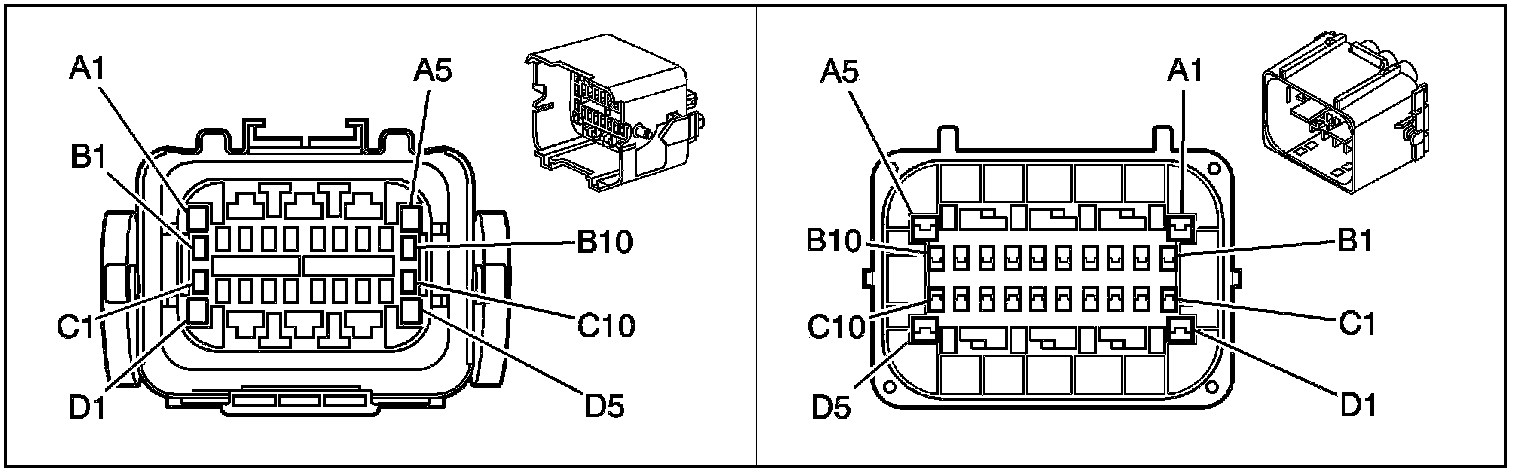

Inline Harness Connector End Views

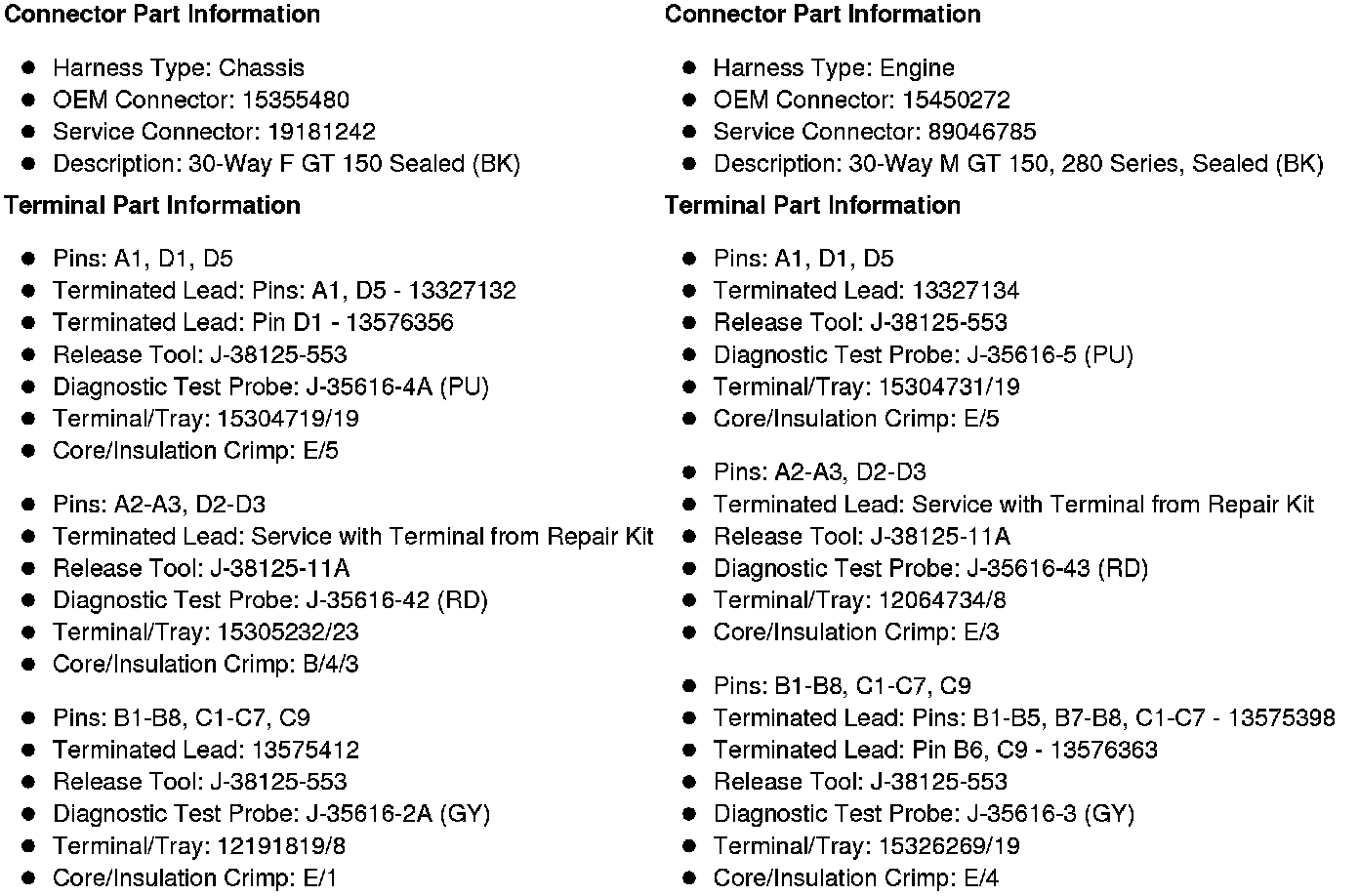

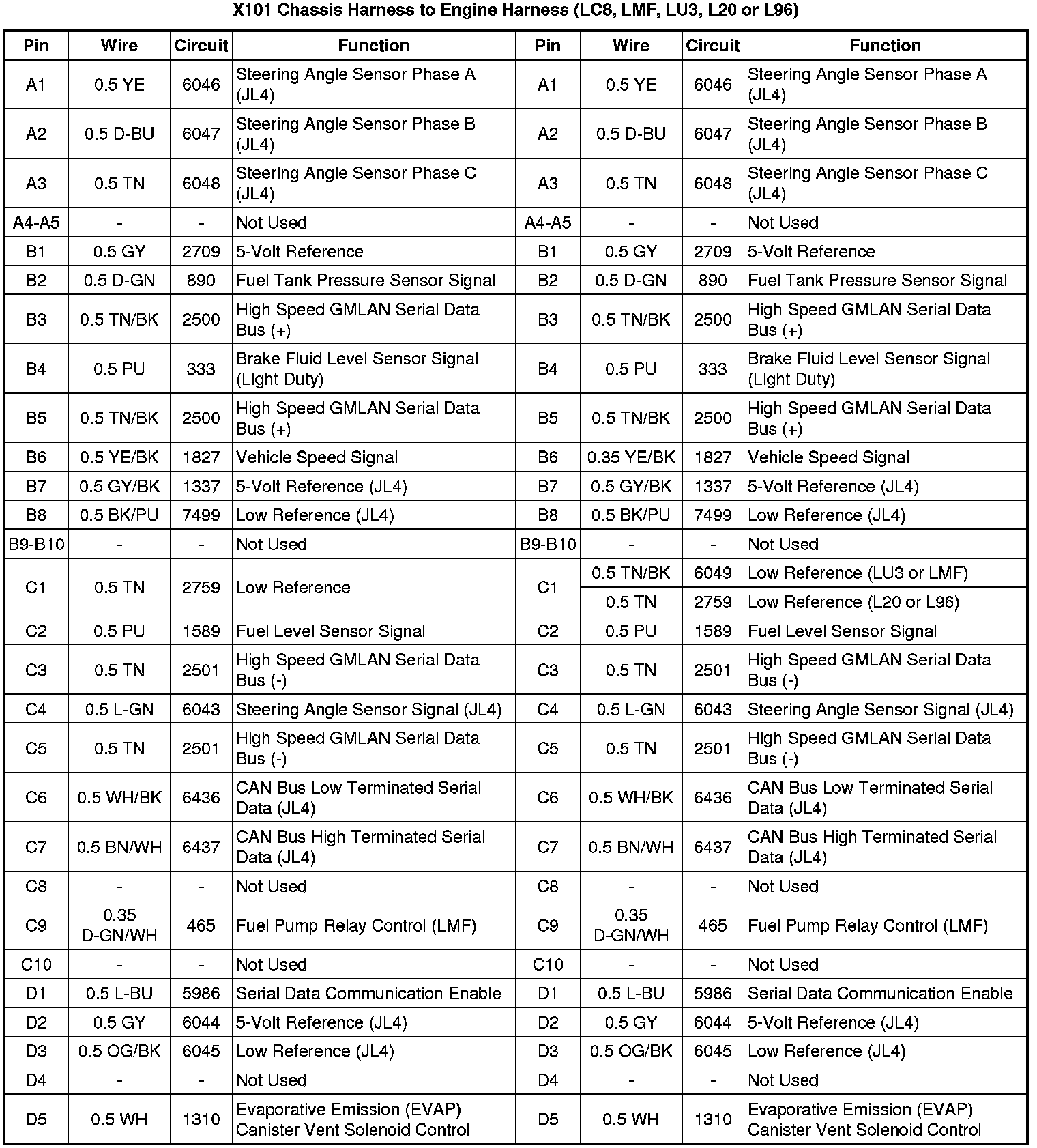

X101 Chassis Harness to Engine Harness (LC8, LMF, LU3, L20 or L96)
