Electrical Diagrams

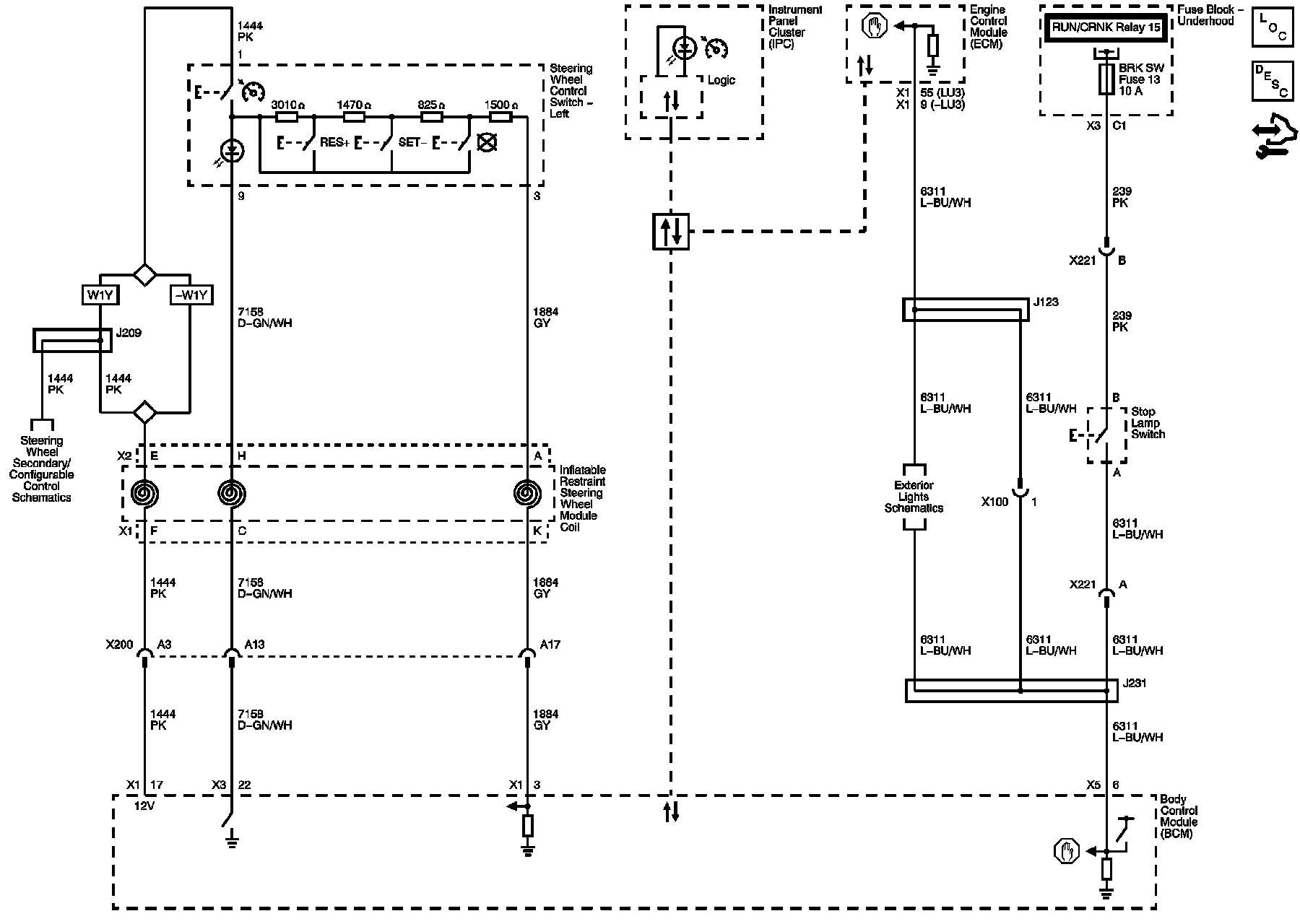

Cruise Control Schematics

K34





AIRBAG, BRK SW, ECM IGN/GLOW PLUG MDL IGN, FCSM IGN, IPC, STR/WHL/SNSR, TCM IGN, and TRANS Fuses
AIRBAG, BRK SW, ECM IGN/GLOW PLUG MDL IGN, FCSM IGN, IPC, STR/WHL/SNSR, TCM IGN, and TRANS Fuses
Data Communication Schematics
Stop Lamp Controls and CHMSL
