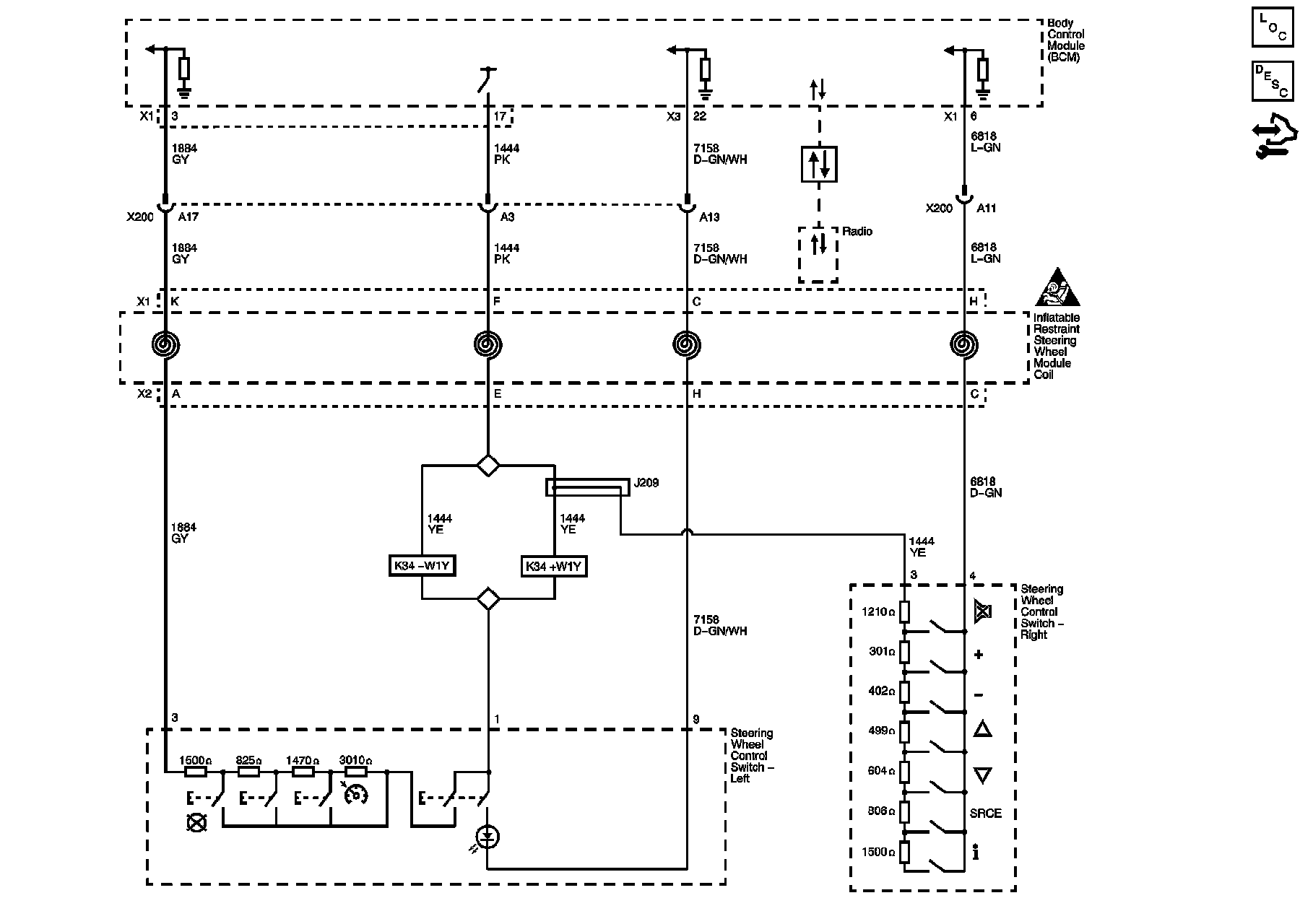

Steering Wheel Secondary/Configurable Control Schematics

Steering Wheel Secondary/Configurable Control Schematics

Steering Wheel Secondary/configurable Controls
