Radio/Navigation System Schematics




Radio/Navigation System Schematics

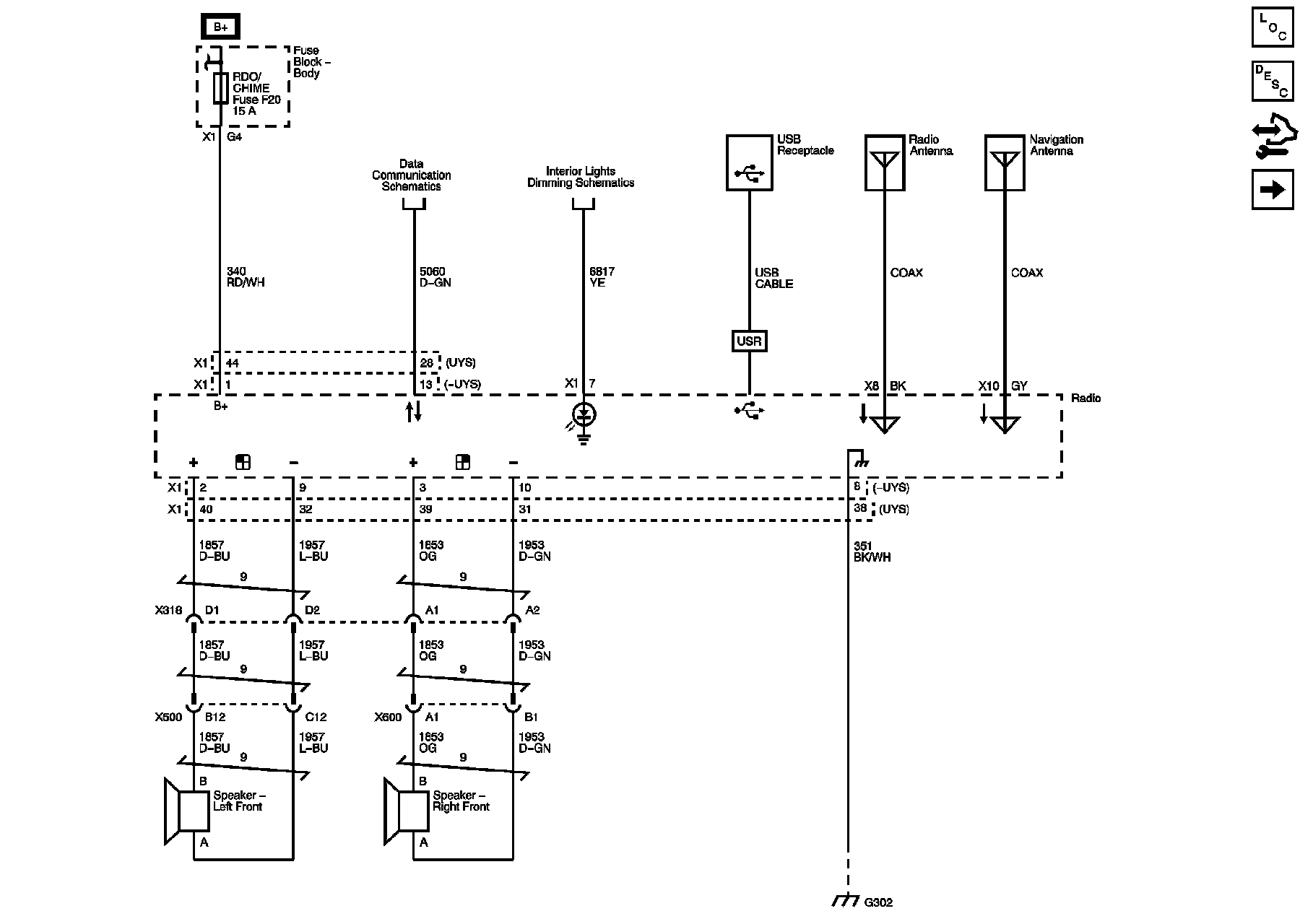

Power, Ground, Serial Data, Antenna and Front Speaker Outputs

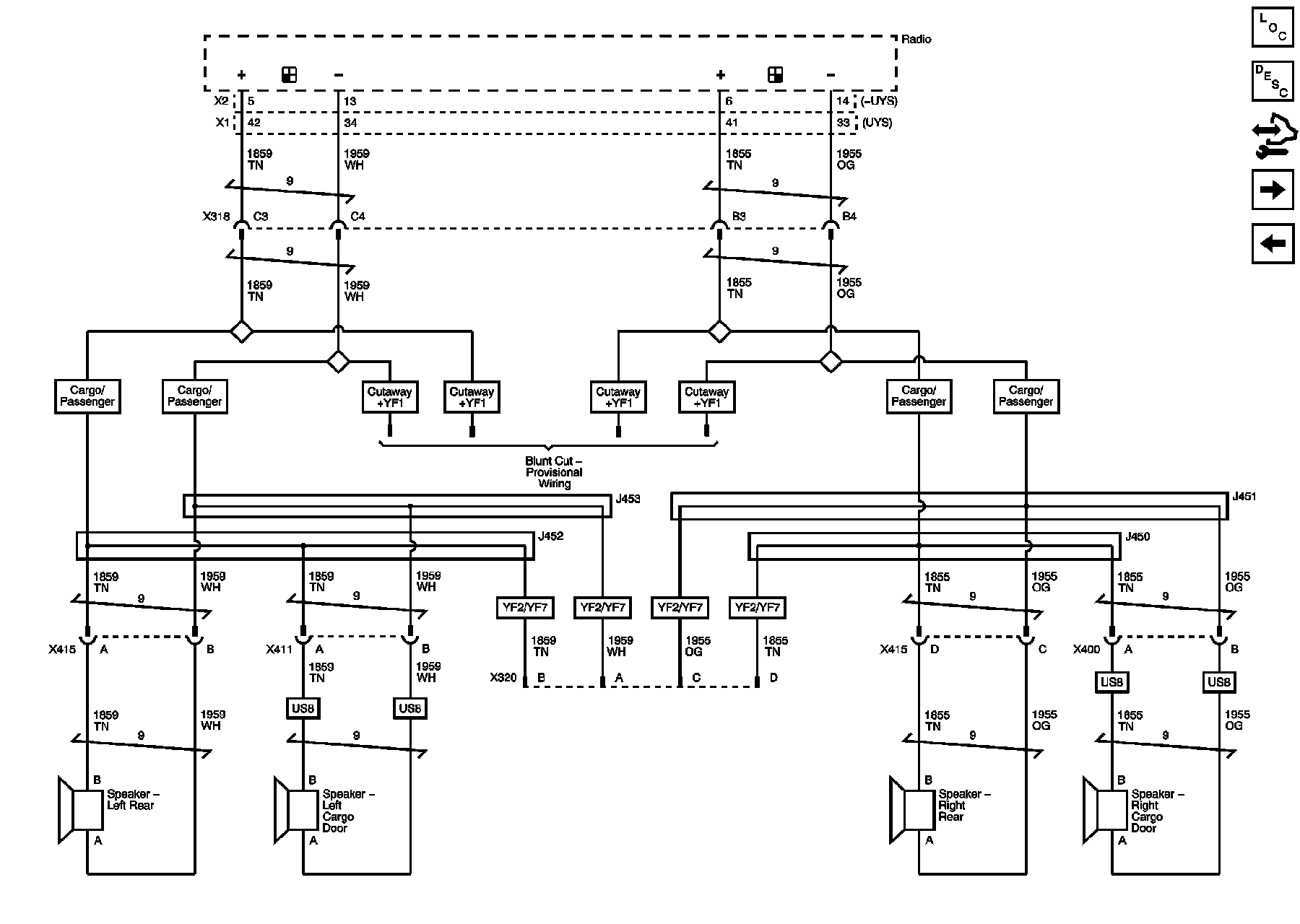

Rear Speaker Outputs





Digital Radio Receiver (U2K)





Steering Wheel Radio Redundant Controls
