Electrical Diagrams




Object Detection Schematics

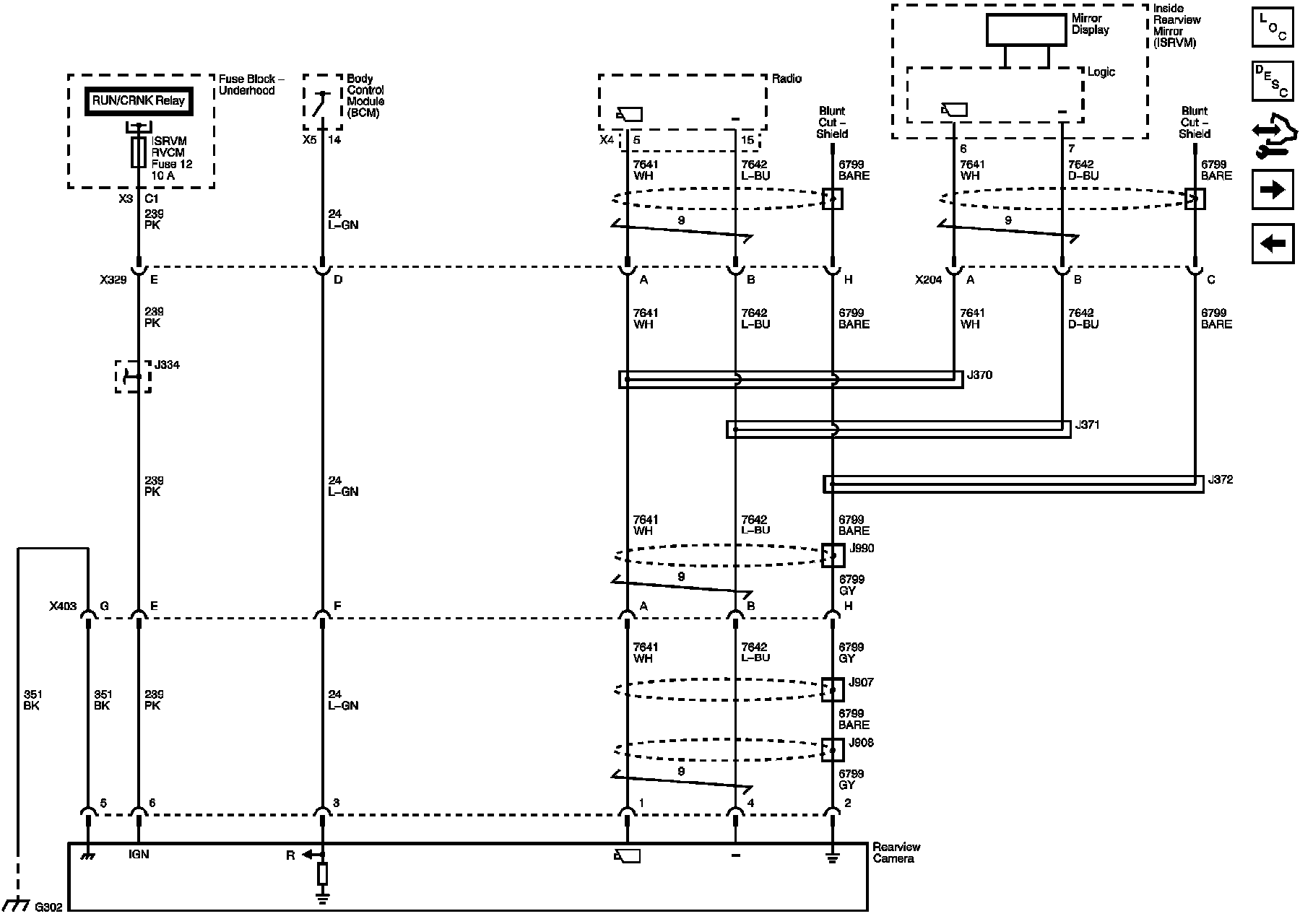

Rear Vision Camera (with UYS)





Rear Vision Camera (without UYS)





Rear Object Sensing Power, Ground, and Serial Data (UD7)

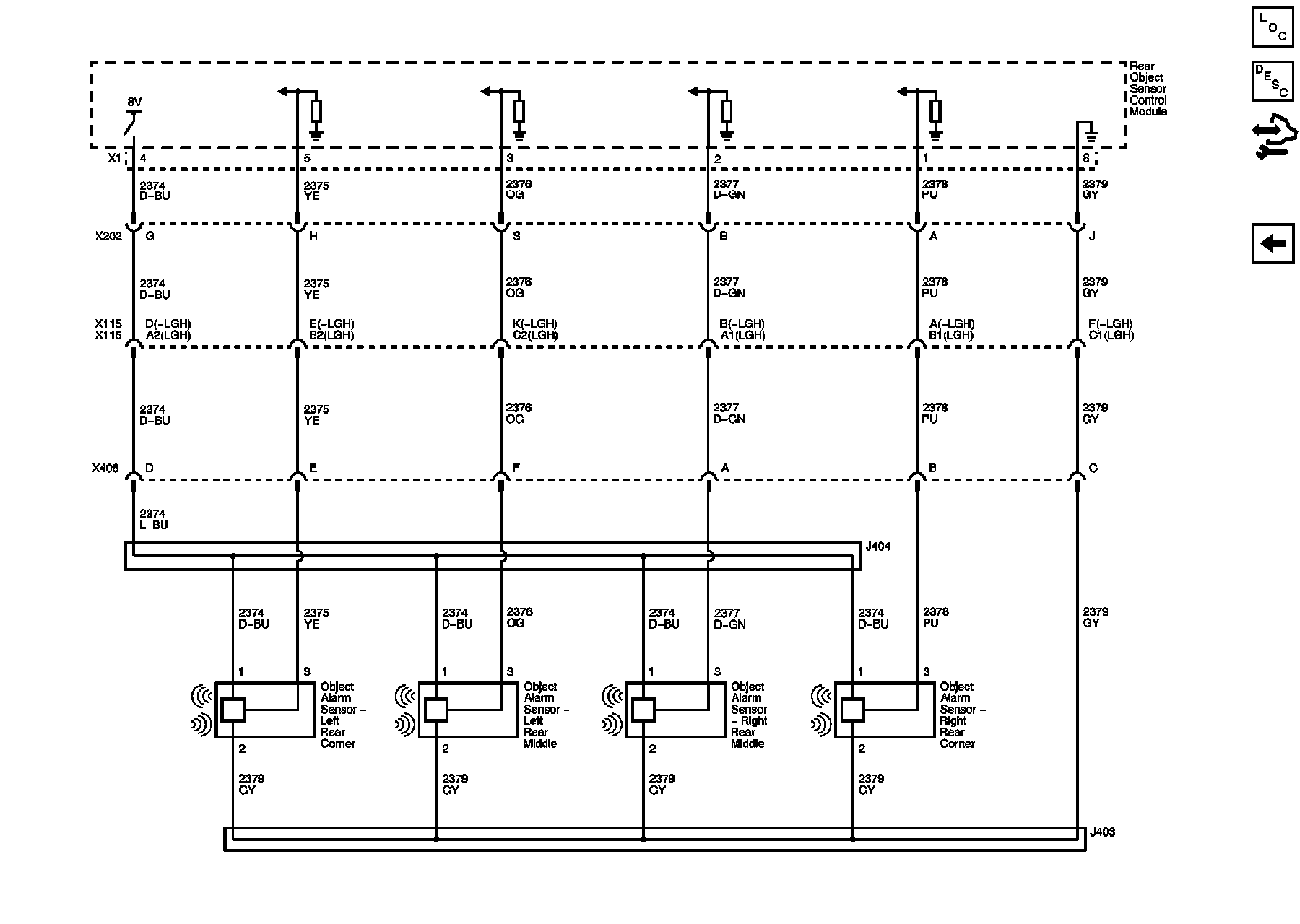

Rear Object Sensors (UD7)
