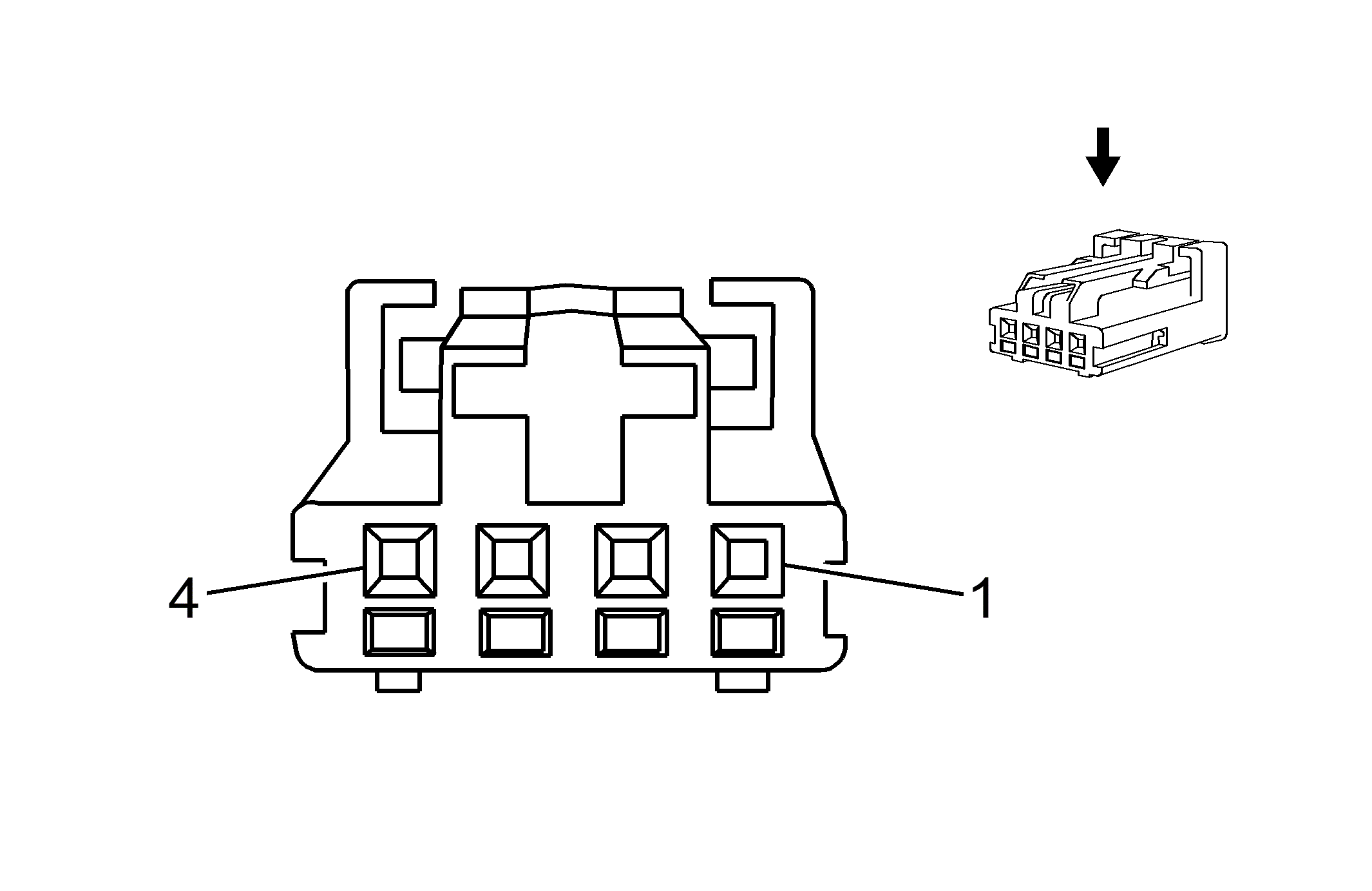

X915 License Lamp Harness to Rear Compartment Lid Harness (-UVC)
|
|
|
Connector Part Information
- Harness Type: License Lamp
- OEM Connector: 936119-1
- Service Connector: Service by Harness- See Part Catalog
- Description: 4-Way F (BK)
|
Connector Part Information
- Harness Type: Rear Compartment Lid
- OEM Connector: 13599751
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575585 |
J-35616-64B (L-BU) |
J-38125-12A |
928999-5 |
15 |
J |
J |
| II |
13327167 |
J-35616-65B (L-BU) |
J-38125-12A |
963716-2 |
7 |
J |
J |
X915 License Lamp Harness to Rear Compartment Lid Harness (-UVC)
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/WH |
2550 |
I |
- |
Ground |
1 |
0.5 |
BK |
2550 |
II |
- |
| 2 |
0.5 |
WH |
6846 |
I |
- |
Rear License Lamp Control |
2 |
0.5 |
GN/YE |
6846 |
II |
- |
| 3 |
0.5 |
BK |
1650 |
I |
- |
Ground |
3 |
0.5 |
BK |
1650 |
II |
- |
| 4 |
0.5 |
BK |
5797 |
I |
- |
Rear Closure Handle Switch Open Signal |
4 |
0.5 |
YE/D-BU |
5797 |
II |
- |
