Front Compartment Splash Shield Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

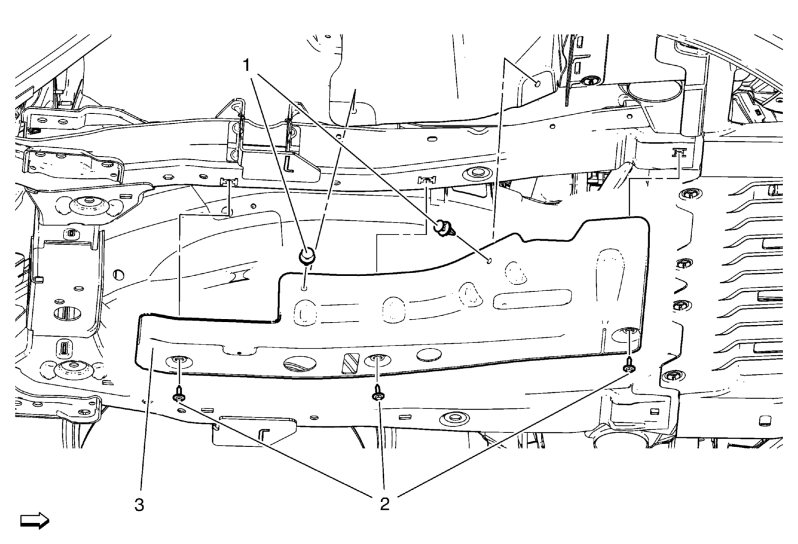

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Splash Shield Retainer (Qty: 2) |
| 2 | Front Compartment Splash Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 3 | Front Compartment Splash Shield |
