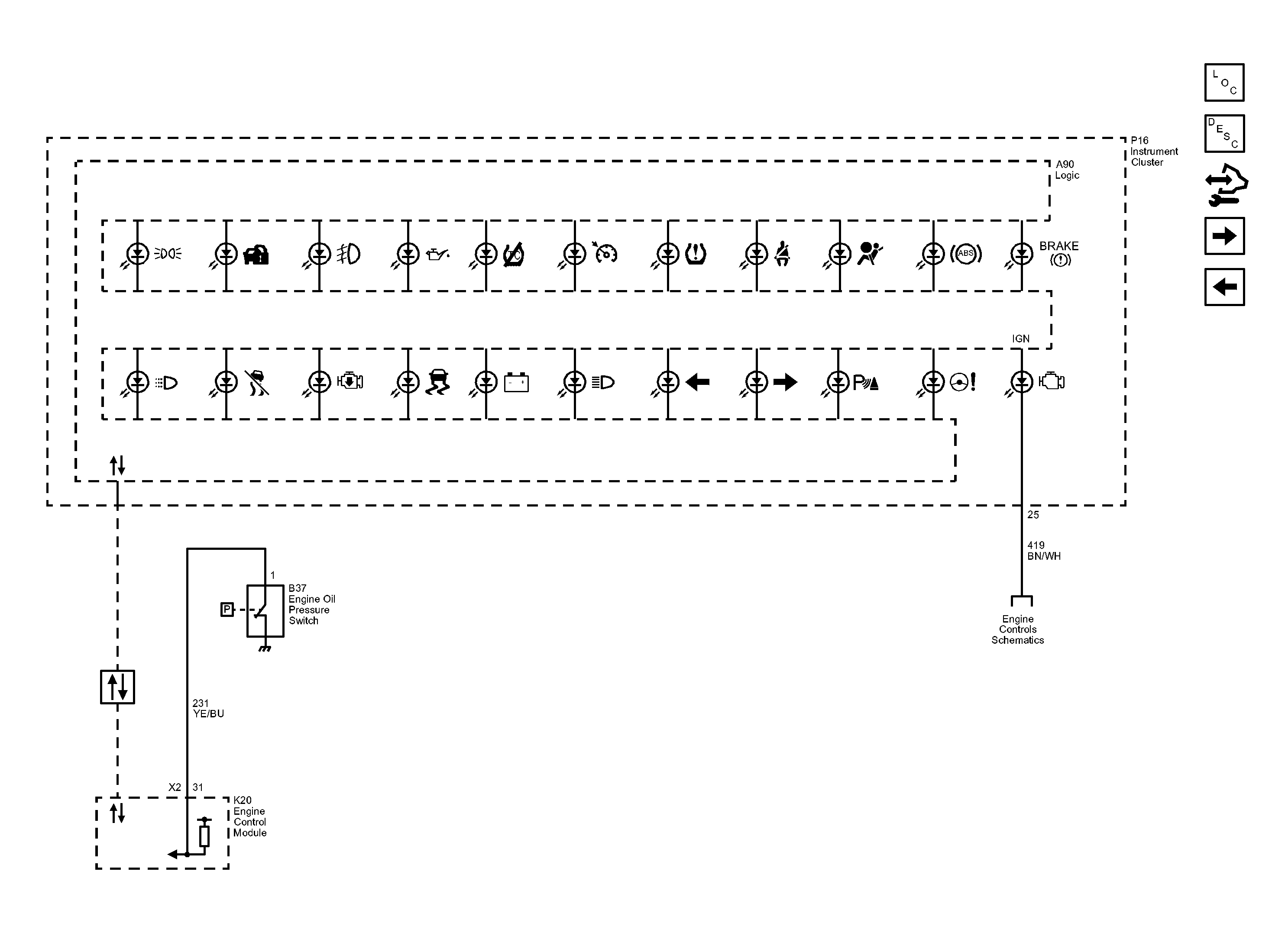

Indicators Wiring Schematics
| Callout | Component Name |
|---|---|
| 419 | Check Engine Indicator Control |
| 419_BN/WH | 419 BN/WH |
| CAV_25 | 25 |
| SD | Serial Data |
| Data_Communication_Schematics_REF | Data Communication Schematics |
| 231 | Oil Pressure Switch Signal |
| 231_YE/BU | 231 YE/BU |
| CAV_31 | 31 |
| CONN_X2 | X2 |
| CAV_1 | 1 |
| A90 | Logic |
| B37 | |
| Engine_Controls_Schematics_REF | Engine Controls Schematics |
| K20 | |
| P16 |
