Internal Mode Switch and TAP Shift Switches

WARNING: This page is about a different variant/trim than selected.

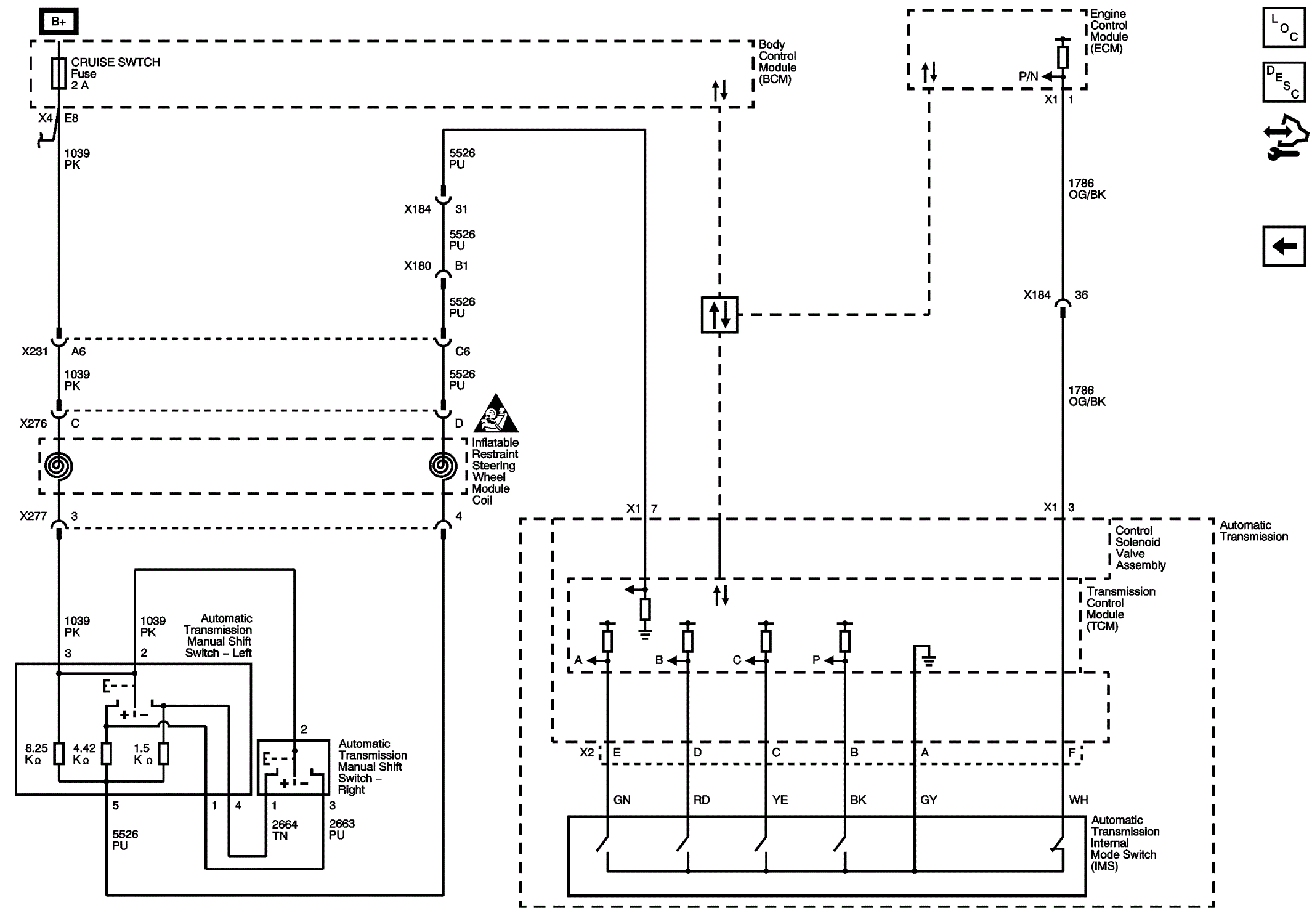

Fig 1: Internal Mode Switch and TAP Shift Switches Wiring Schematic
GM2756568Courtesy of GENERAL MOTORS COMPANY
