ISS, OSS, and TFT Sensors, and Pressure and Shift Controls

WARNING: This page is about a different variant/trim than selected.

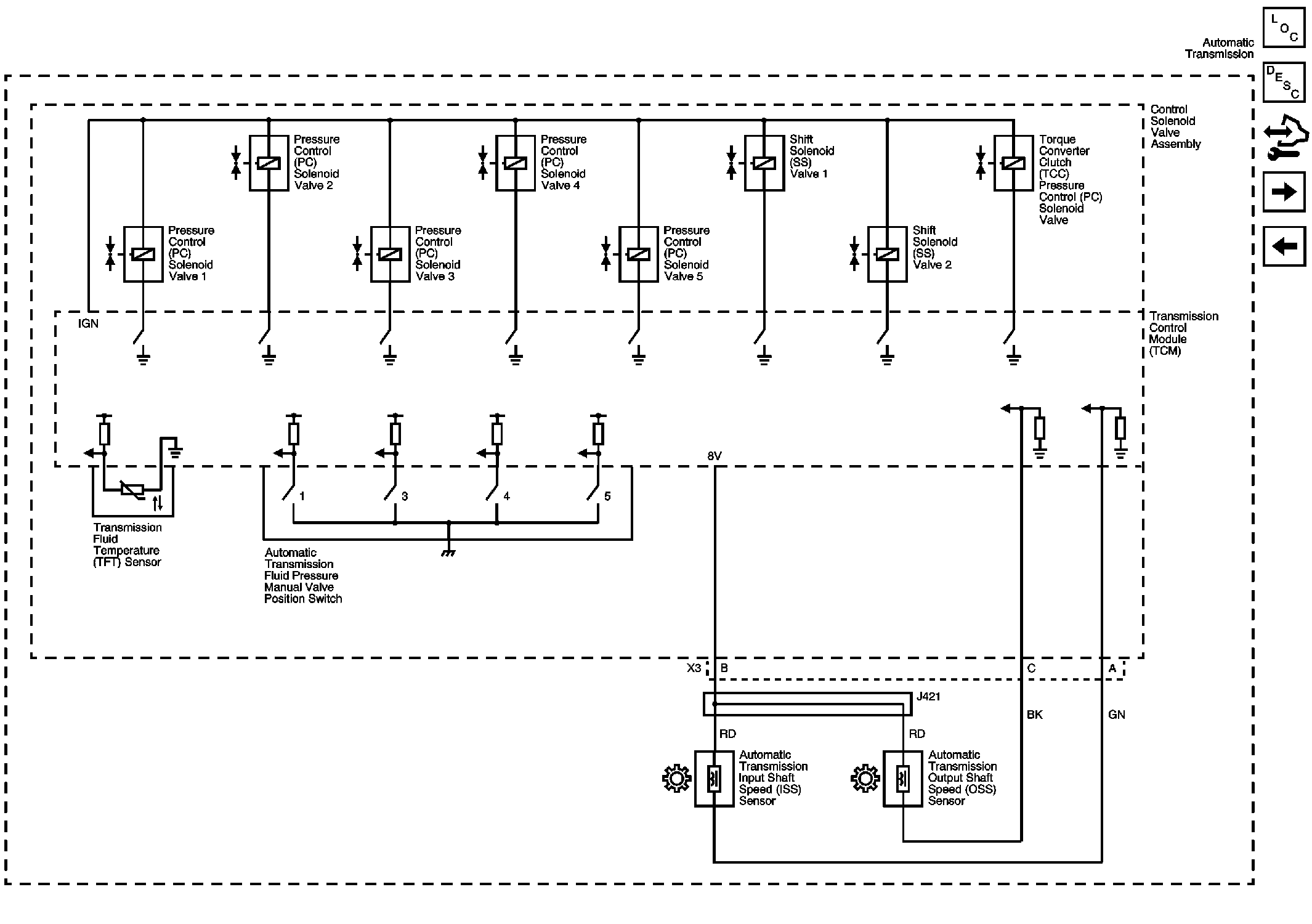

Fig 1: ISS, OSS, and TFT Sensors, and Pressure and Shift Controls Wiring Schematic
GM2756565Courtesy of GENERAL MOTORS COMPANY
