Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side (LS3) , Catalytic Converter Replacement - Left Side (LS7) .
    3. Fig 1: View Of Oil Cooling Lines & Bolt
    GM1705099Courtesy of GENERAL MOTORS COMPANY
  3. Remove the transmission fluid cooler pipe bolt (2) from the transmission.
  4. Remove the transmission fluid cooler pipes from the transmission.

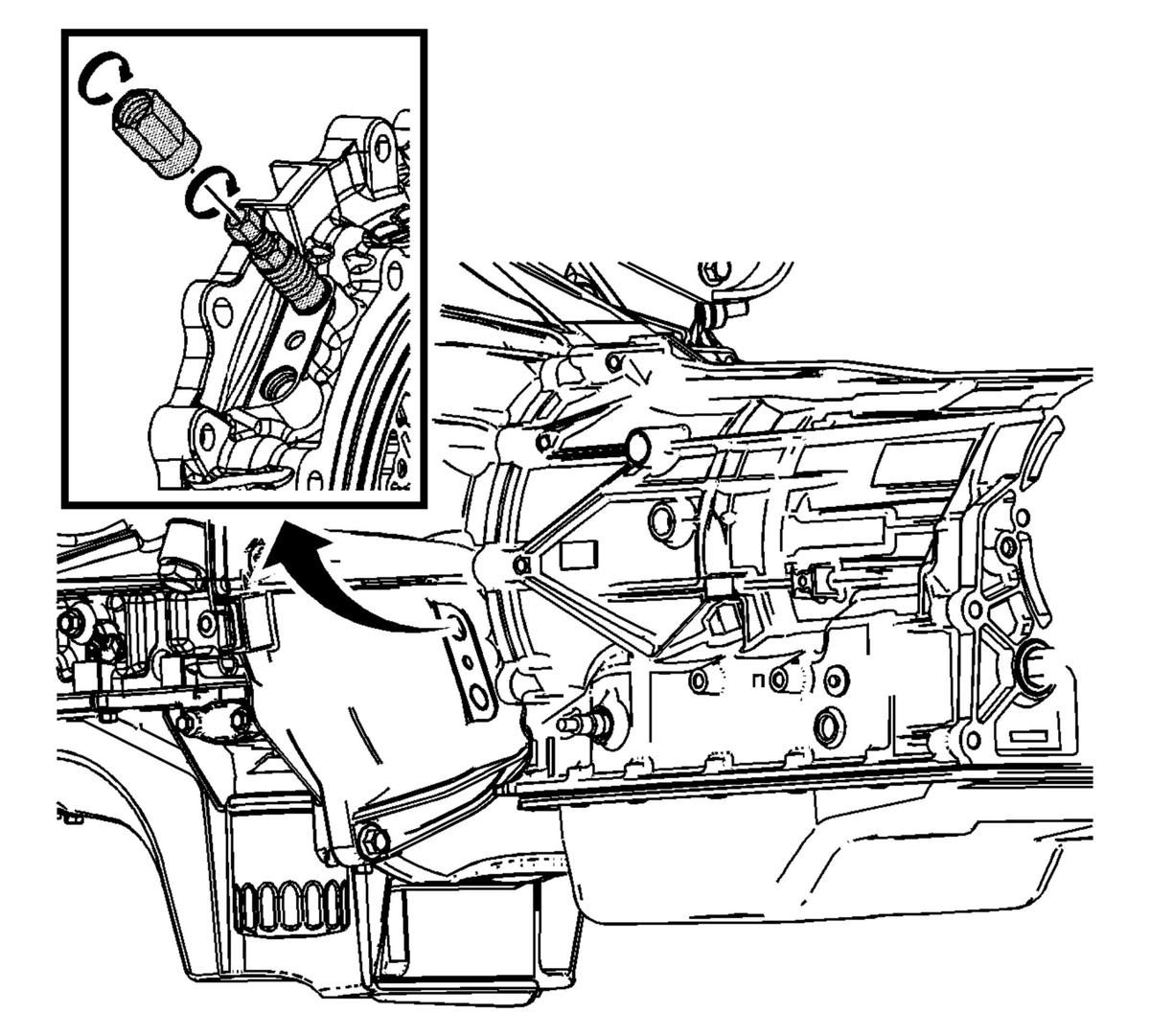

    5. Fig 2: Transmission Fluid Cooler Pipe Seals
    GM2664292Courtesy of GENERAL MOTORS COMPANY
  5. Using DT-45201  remover , remove the transmission fluid cooler pipe seals from the transmission.
