Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the floor panel tunnel reinforcement. Refer to Floor Panel Tunnel Panel Reinforcement Replacement .
- Install a drain pan under the vehicle.

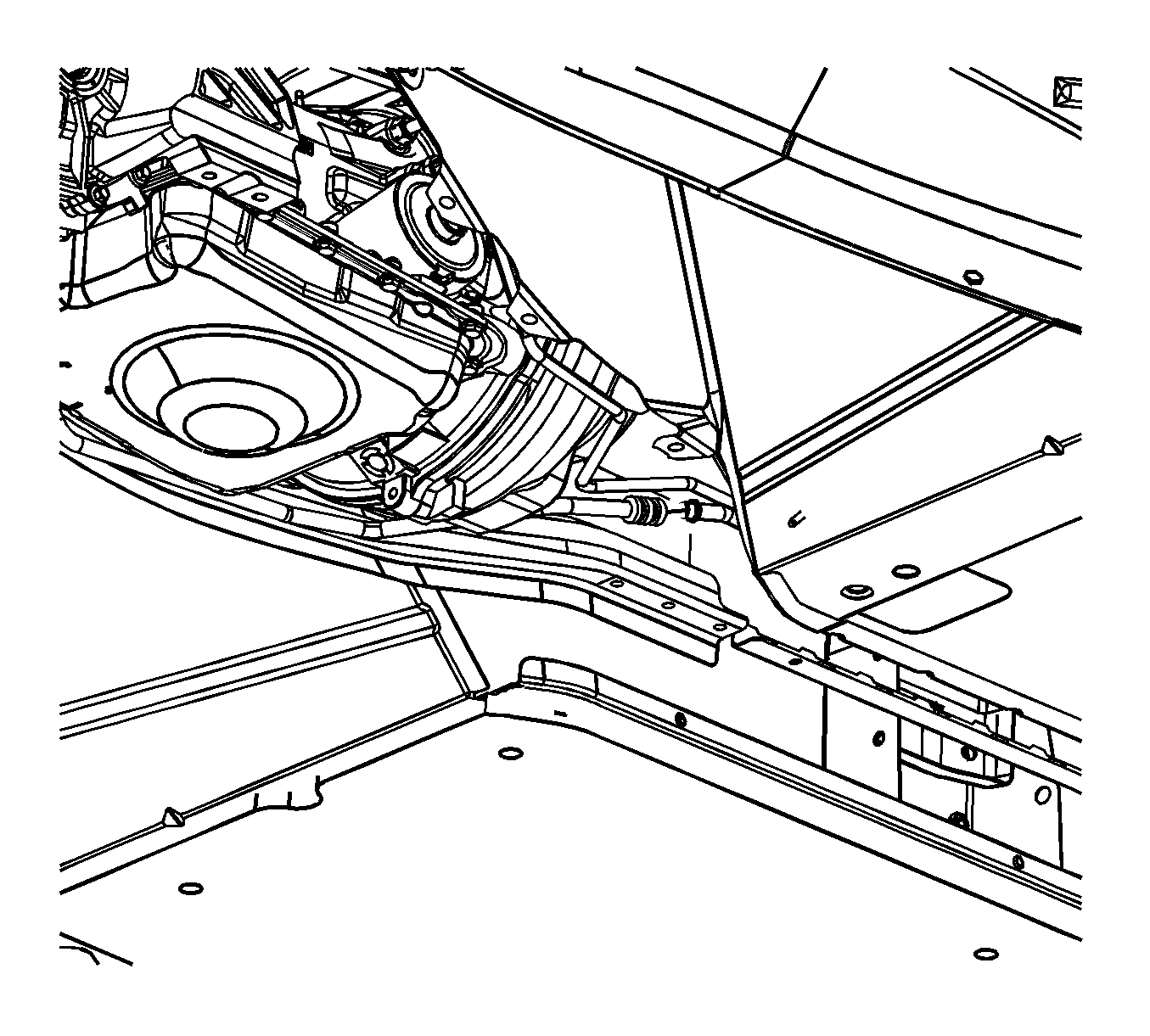

- The front transmission fluid cooler pipes connect to the rear transmission fluid cooler pipes near at the rear of the engine next to the starter motor.
- Cap or plug the open transmission fluid cooler pipes immediately to prevent system contamination.
- Disconnect the intermediate transmission fluid cooler lower pipe from the front transmission fluid cooler lower pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Disconnect the intermediate transmission fluid cooler lower pipe from the rear transmission lower pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Remove the transmission fluid cooler pipes clip.
- Remove the transmission fluid cooler pipe retaining bolts from the driveline support.
- Remove the intermediate transmission fluid cooler lower pipe from the vehicle.
NOTE:
NOTE:
Spread the clamps holding the 2 pipes together to remove the pipe from the vehicle.
