Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Install a drain pan under the vehicle.
- Disconnect the intermediate transmission fluid cooler lower pipe from the rear transmission lower pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Remove the transmission cooler pipe clip.

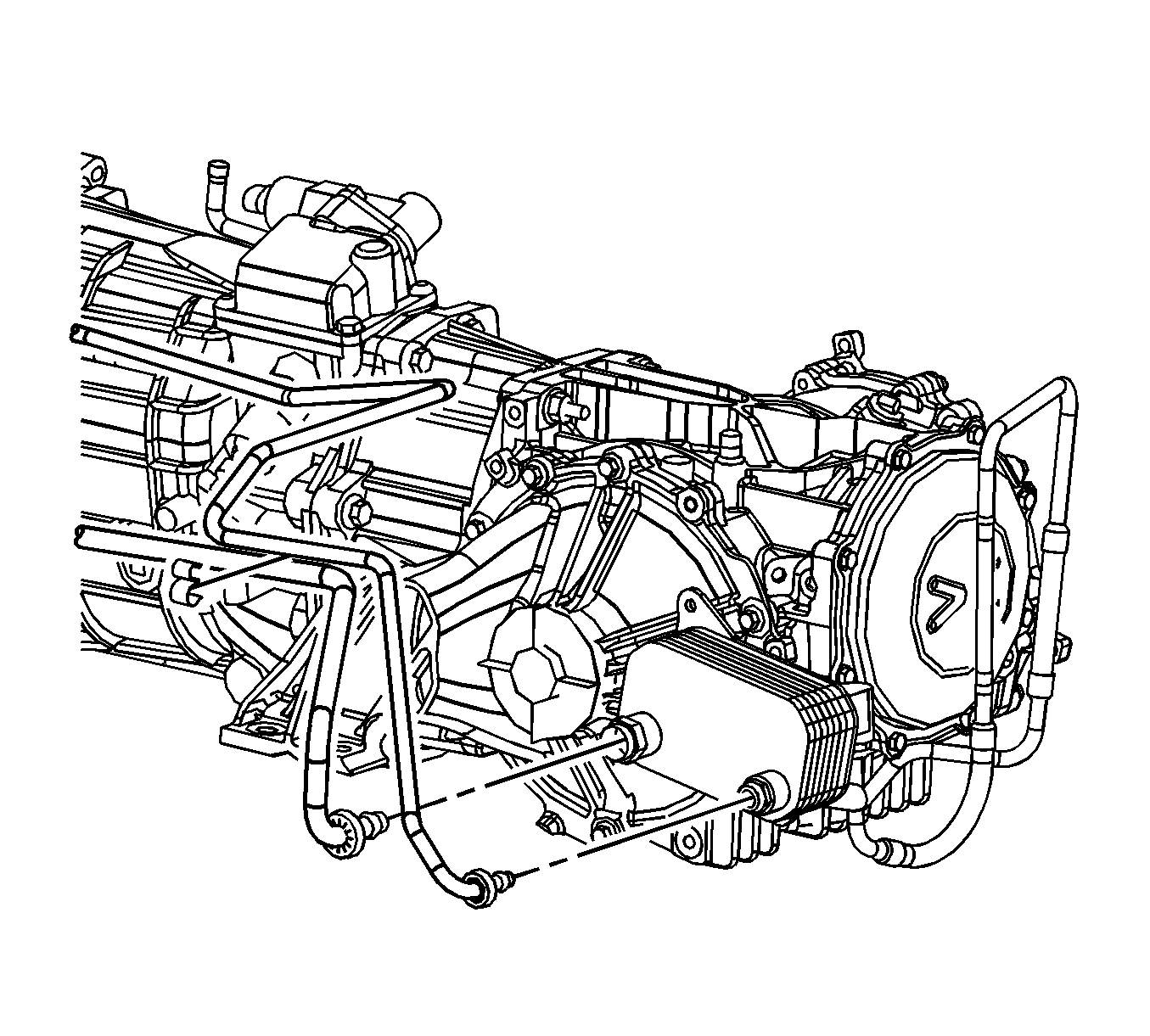

- Remove the rear transmission lower pipe from the differential oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Remove the rear transmission fluid cooler lower pipe from the vehicle.
IMPORTANT:
Cap or plug the open transmission fluid cooler pipes immediately to prevent system contamination.
