Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Install a drain pan under the vehicle.
    3. Fig 1: Upper & Lower Transmission Oil Cooler Lines At Intermediate Lines
    GM1503871Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the upper transmission oil cooler line from the upper intermediate line. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  4. Disconnect the lower transmission oil cooler line from the lower intermediate line. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

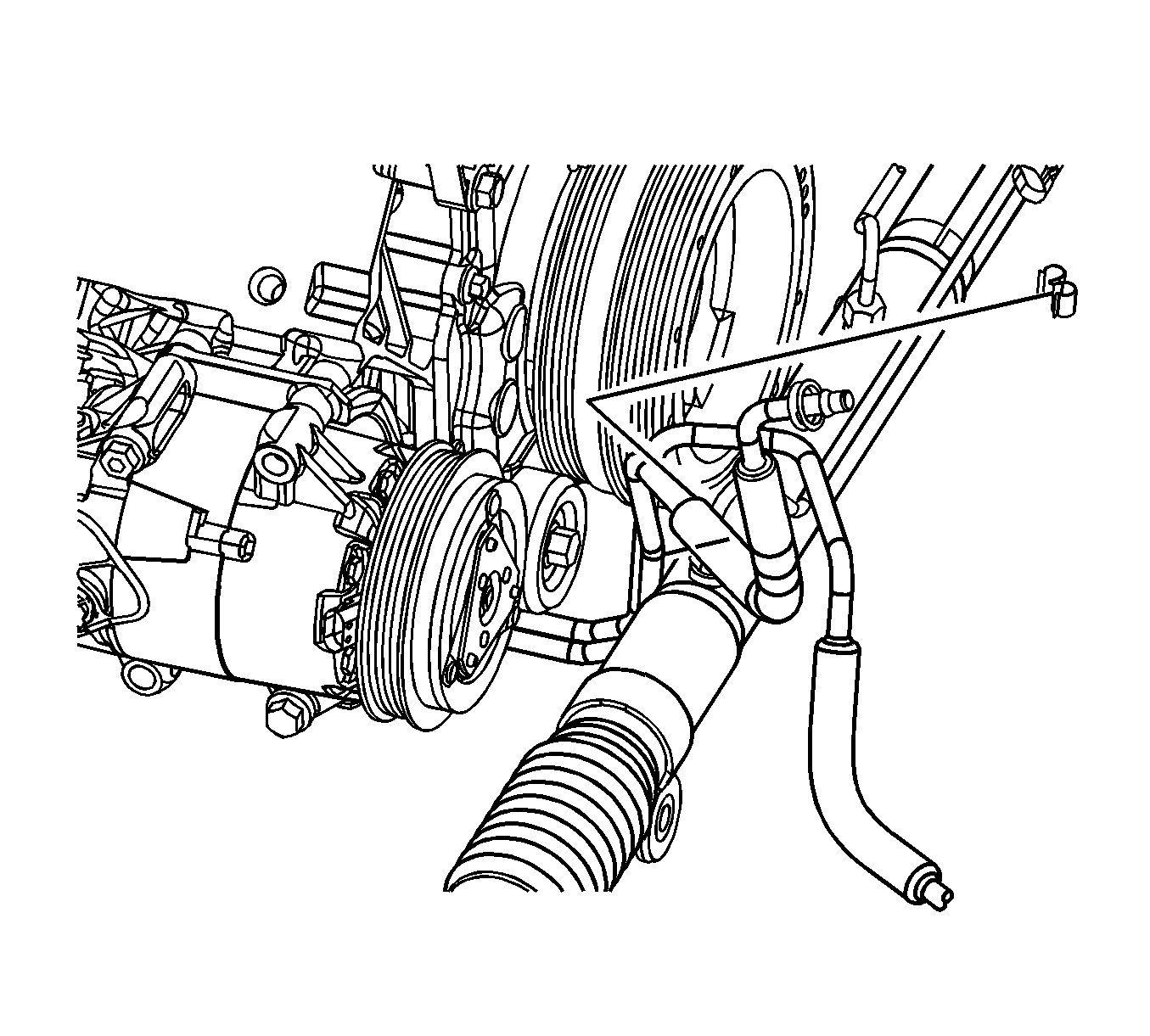

    5. Fig 2: Upper & Lower Transmission Line Front Clip
    GM1503873Courtesy of GENERAL MOTORS COMPANY
  5. Remove the clip holding the front upper and lower transmission lines.

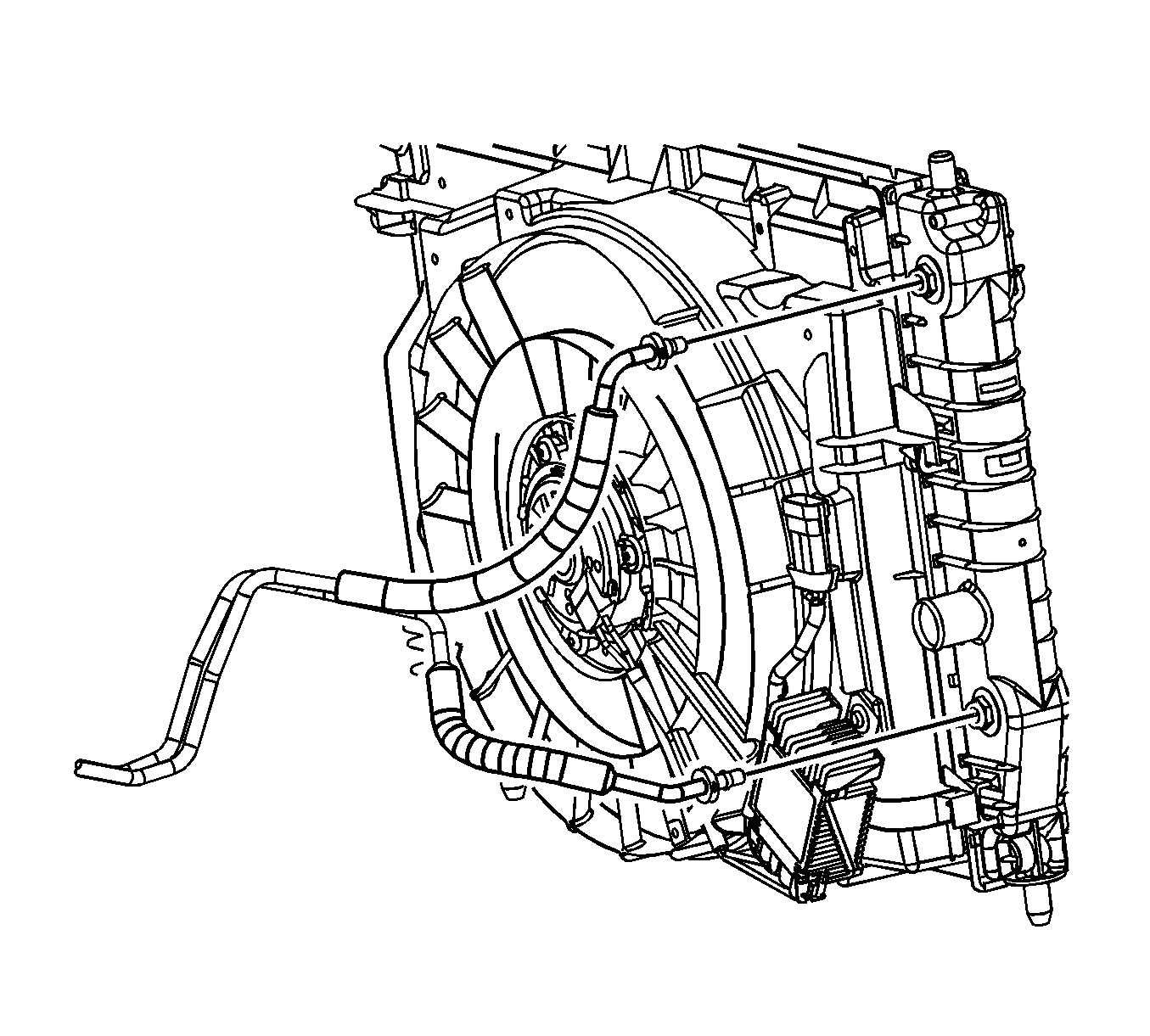

    6. Fig 3: Upper & Lower Transmission Oil Cooler Lines At Radiator
    GM1503922Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the upper transmission oil cooler line from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  7. Disconnect the lower transmission oil cooler line from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  8. Remove the right motor mount. Refer to Engine Mount Replacement - Right Side .

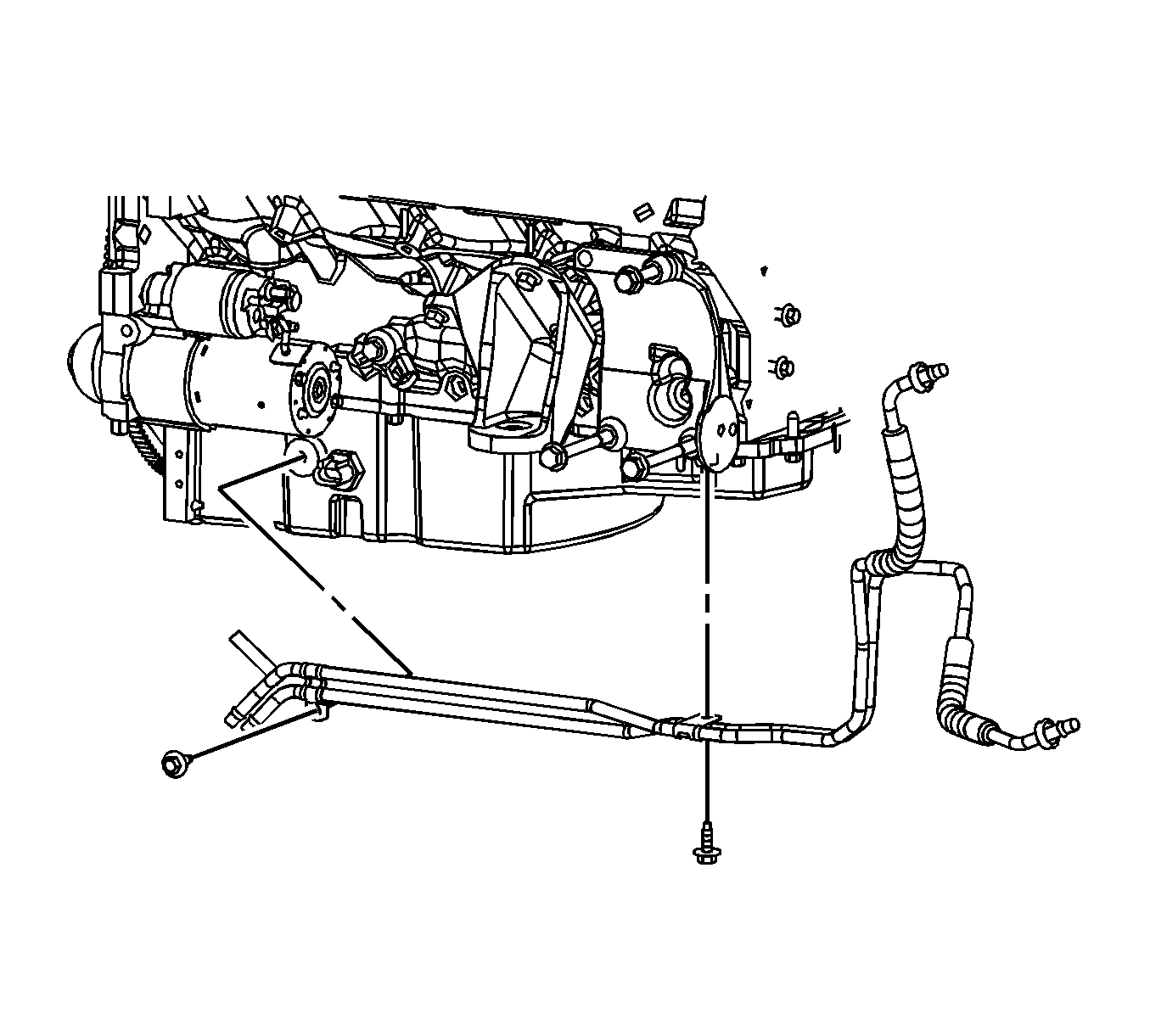

    9. Fig 4: Transmission Oil Cooler Lines & Bolts
    GM1503860Courtesy of GENERAL MOTORS COMPANY
  9. Remove the front transmission oil cooler line bolts.
  10. Remove the front transmission oil cooler lines from the vehicle.
