Transmission Control Lever Knob Replacement

WARNING: This page is about a different variant/trim than selected.

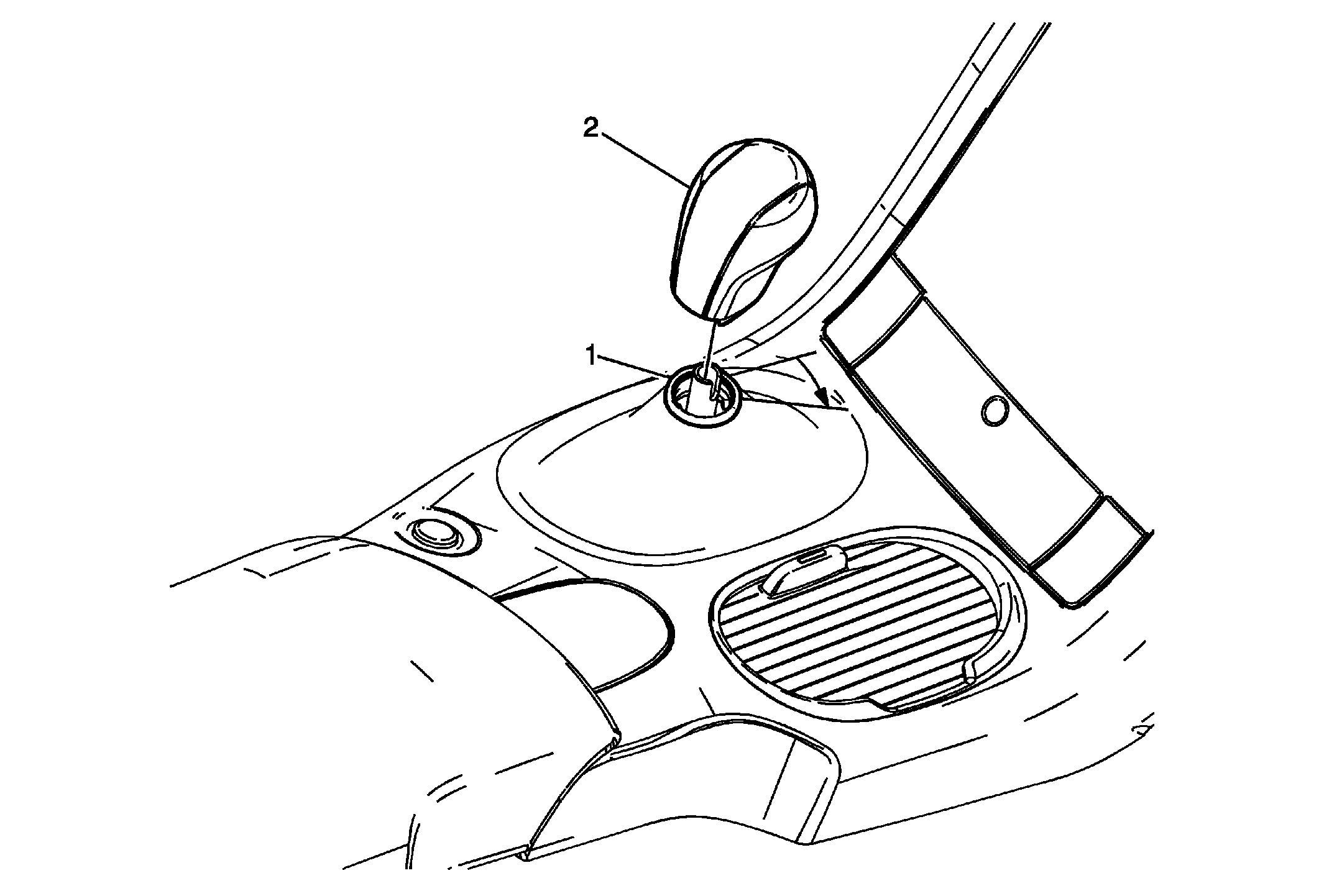

Fig 1: View Of Shift Control Boot & Knob

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Shift Control Boot To remove, grasp boot near shift knob, rotate boot clockwise from 12:00 to 1:00 position. Pull boot down off shift knob. To install, push boot onto shift knob. Rotate boot counter-clockwise from 1:00 to 12:00 position in order to secure boot to shift knob.
2	Shift Control Knob TIP: Pull knob up off shift lever. Considerable effort may be required to remove knob from shift control lever.
