Range Selector Lever Cable Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

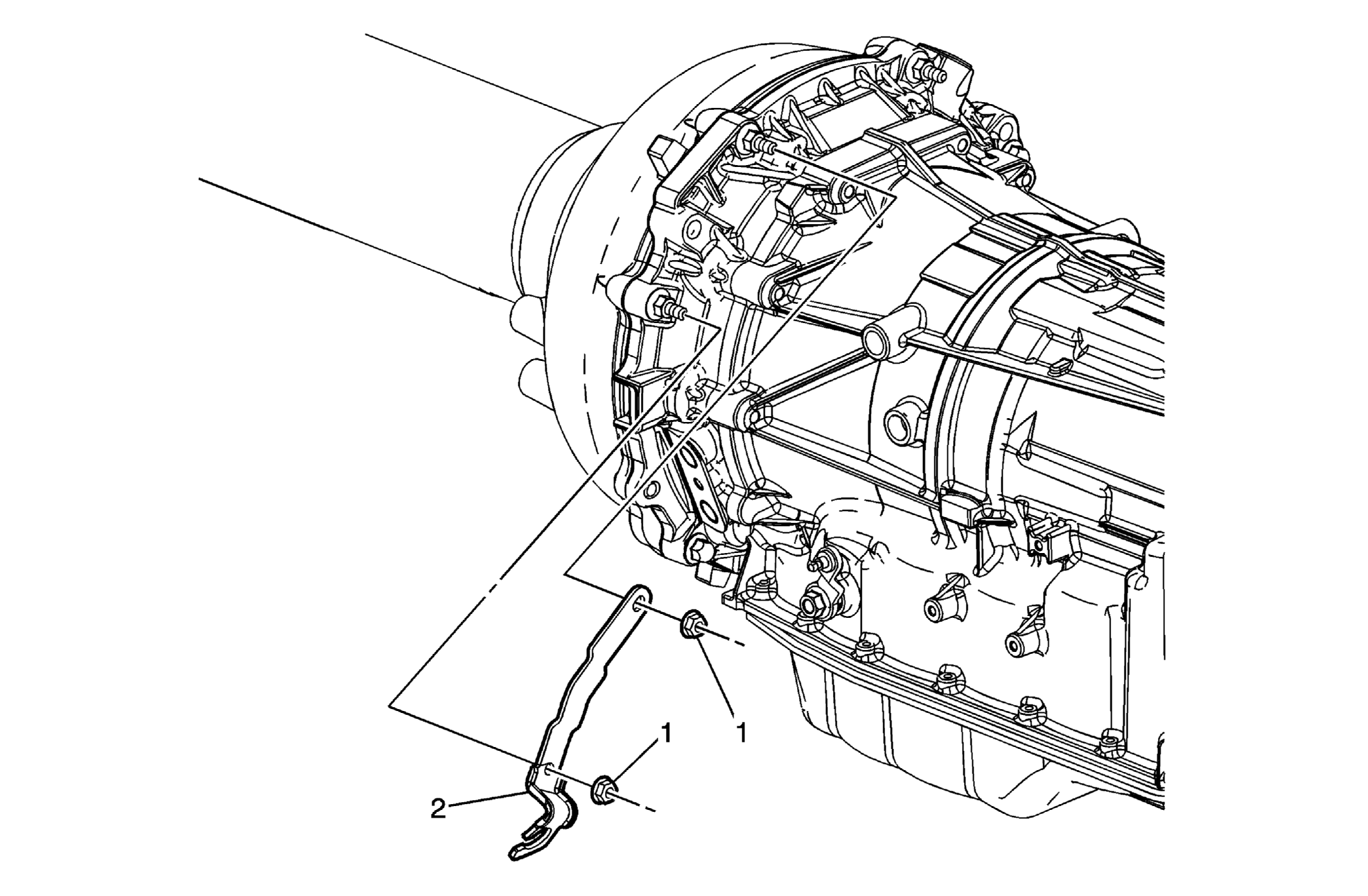

Fig 1: View Of Automatic Transmission Range Selector Cable Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the range select cable from the range selector cable bracket. Refer to Range Selector Lever Cable Replacement .
1	Range Selector Cable Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Range Selector Cable Bracket

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the range select cable from the range selector cable bracket. Refer to Range Selector Lever Cable Replacement .

Range Selector Cable Bracket Nut (Qty: 2)

CAUTION:

Tighten
20 N.m (15 lb ft)

Range Selector Cable Bracket
