Manual Shift Shaft and Seal Replacement
WARNING: This page is about a different variant/trim than selected.

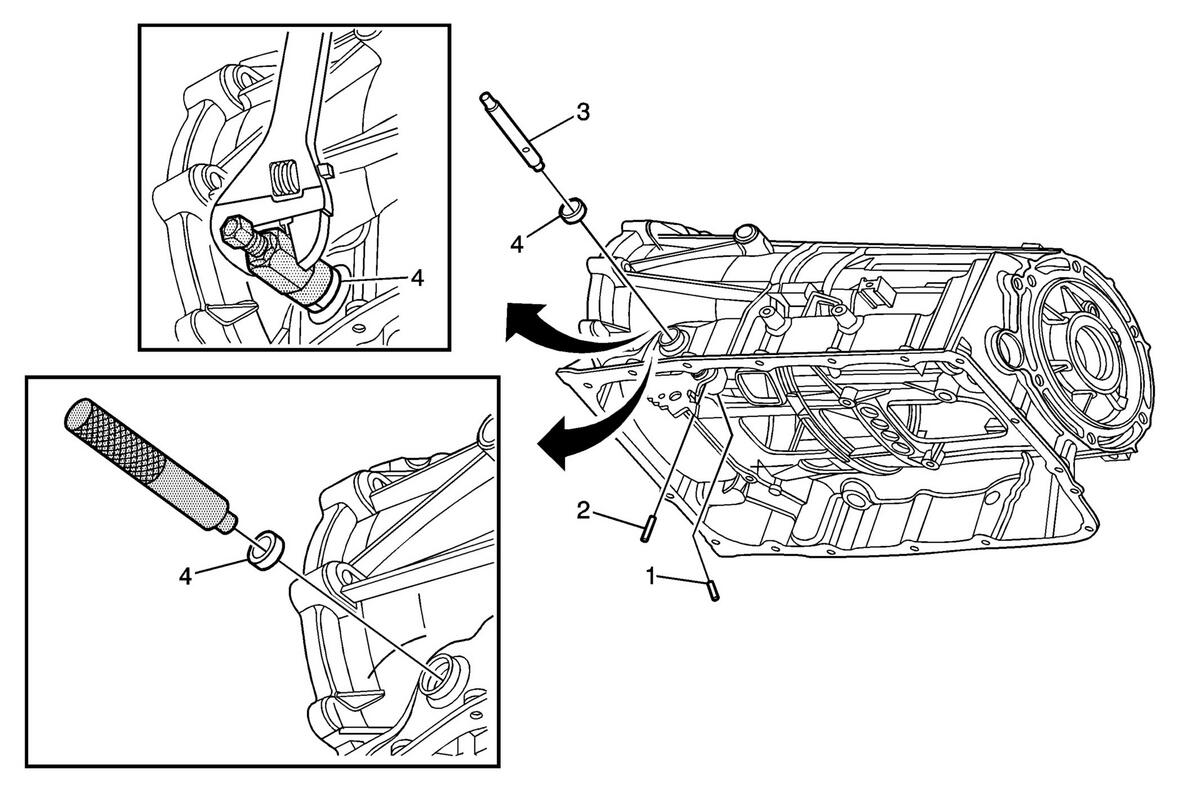

Courtesy of GENERAL MOTORS COMPANY Manual Shift Shaft and Seal Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the transmission fluid pan. Refer to Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement .
- Remove the control valve body. Refer to Control Valve Lower Body and Upper Body Replacement .
|
| 1 |
Manual Shift Shaft Pin Procedure
- Discard the pin. Replace with NEW pin.
- "Walk" the pin out using side cutters.
|
| 2 |
Manual Shaft Detent Lever Hub Pin Procedure
- Discard the pin. Replace with NEW pin.
- "Walk" the pin out using side cutters.
|
| 3 |
Manual Shift Shaft
TIP:
The manual shaft must be removed to replace the manual shaft seal. |
| 4 |
Manual Shift Shaft Seal Procedure
- Use the J 45201
cooler line seal remover to remove the seal from the transmission case.
- Use the DT 47770
seal installer to install the seal into the transmission case.
Special Tools
- DT 47770
Seal Installer
- J 45201
Cooler Line Seal Remover
|
