Manual Shift Auxiliary Position Switch Replacement - Steering Wheel

WARNING: This page is about a different variant/trim than selected.

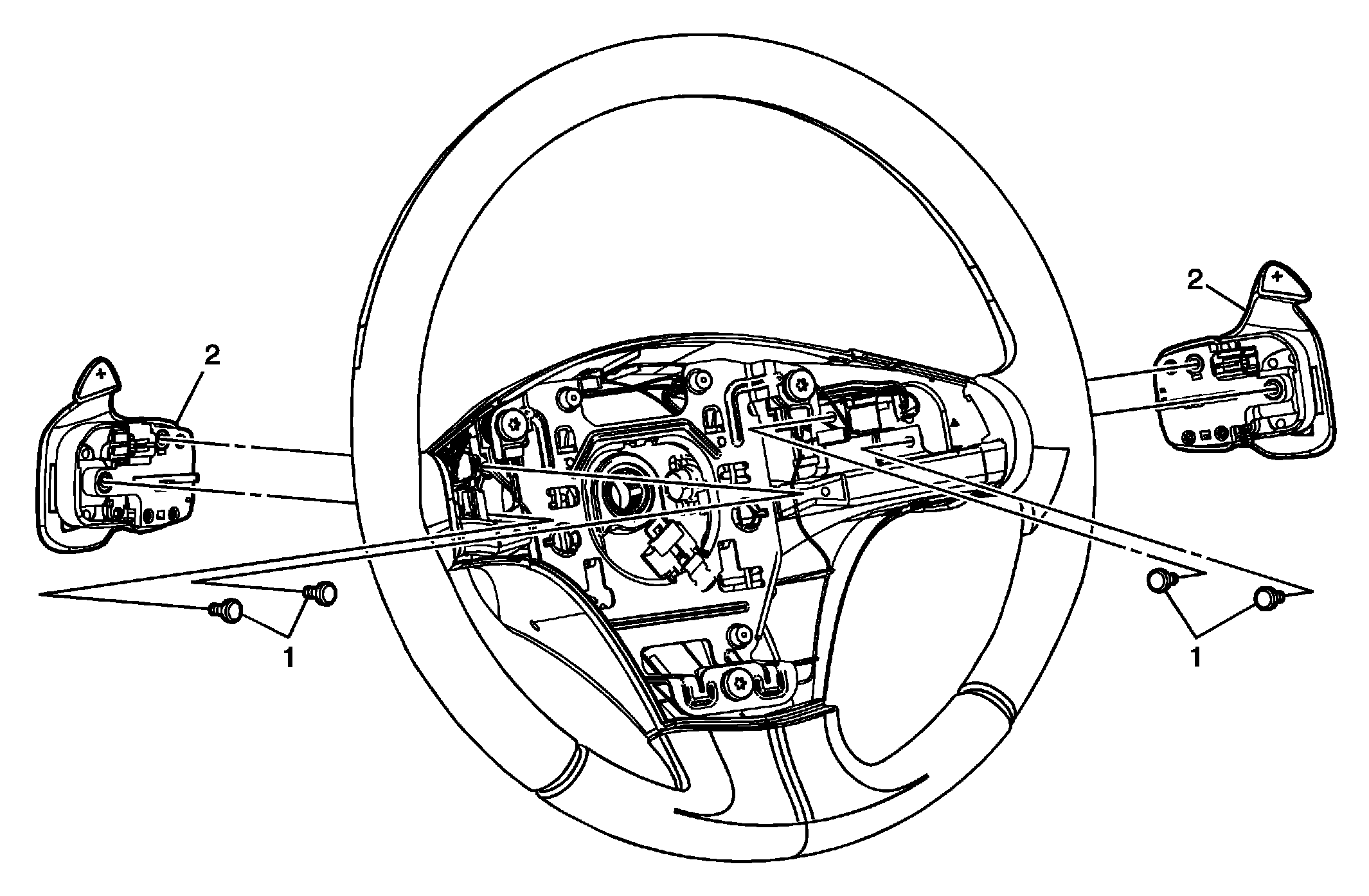

Fig 1: View Of Manual Shift Auxiliary Position Switch & Screw

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement . Remove the steering wheel control switches. Refer to Steering Wheel Control Switch Assembly Replacement .
1	Manual Shift Position Switch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . TIP: Remove the manual shift position switch screws. Tighten 3.5 N.m (31 lb in)
2	Manual Shift Position Switch (Qty: 2) TIP: Disconnect the electrical connectors from the from the switches.

Callout

Component Name

Preliminary Procedures

Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
Remove the steering wheel control switches. Refer to Steering Wheel Control Switch Assembly Replacement .

Manual Shift Position Switch Screw (Qty: 2)

CAUTION:

TIP: Remove the manual shift position switch screws.
Tighten
3.5 N.m (31 lb in)

Manual Shift Position Switch (Qty: 2)
TIP: Disconnect the electrical connectors from the from the switches.
