Automatic Transmission Range Selector Lever Replacement

WARNING: This page is about a different variant/trim than selected.

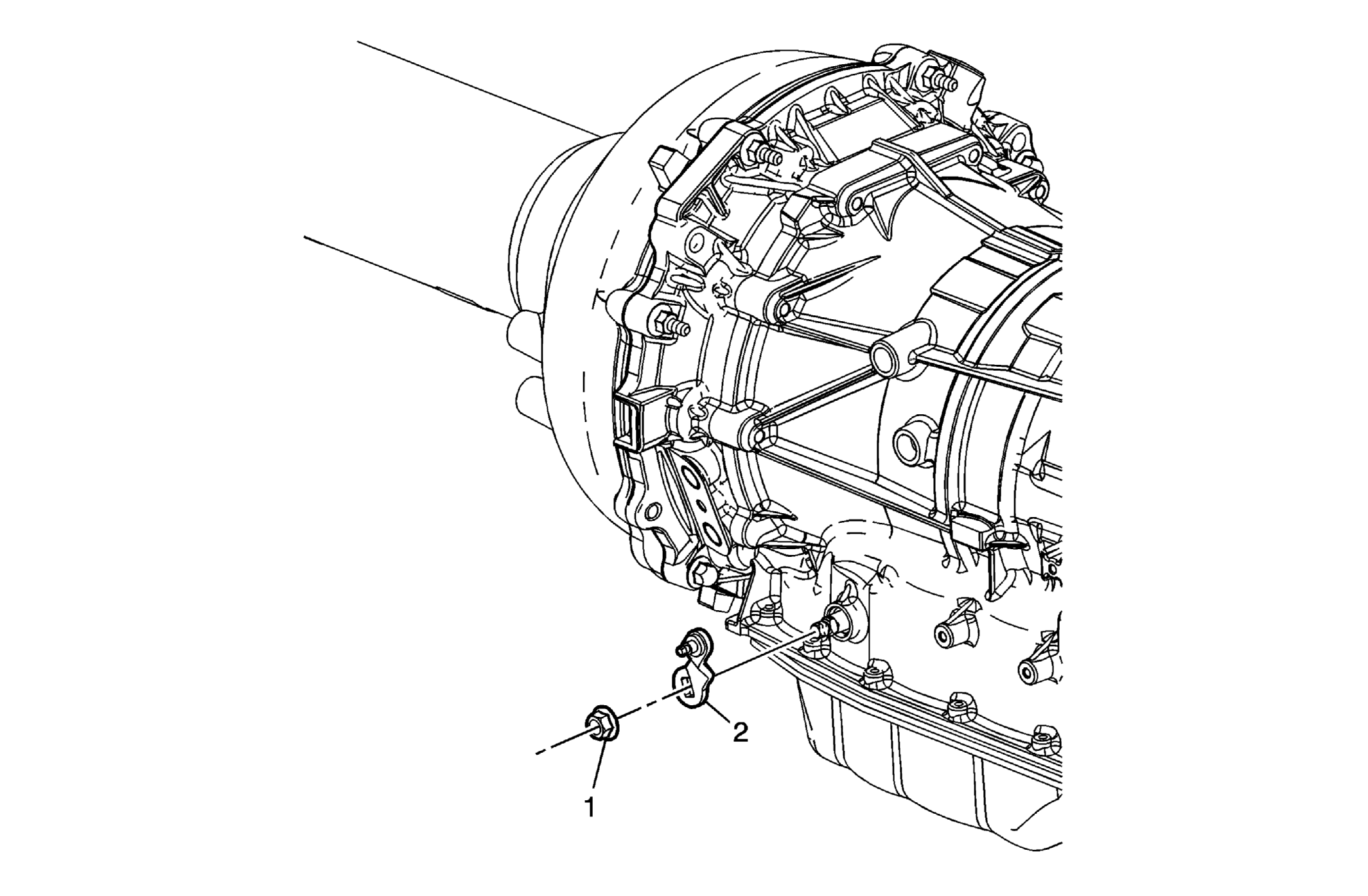

Fig 1: View Of Automatic Transmission Range Selector Cable Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the range select cable from the range selector lever. Refer to Range Selector Lever Cable Replacement .
1	Range Selector Lever Nut WARNING: Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position. CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Range Selector Lever

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the range select cable from the range selector lever. Refer to Range Selector Lever Cable Replacement .

Range Selector Lever Nut

WARNING:

Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

CAUTION:

Refer to Fastener Caution .

Tighten
20 N.m (15 lb ft)

Range Selector Lever
