Automatic Transmission Fluid Pressure Test Hole Plug Replacement

WARNING: This page is about a different variant/trim than selected.

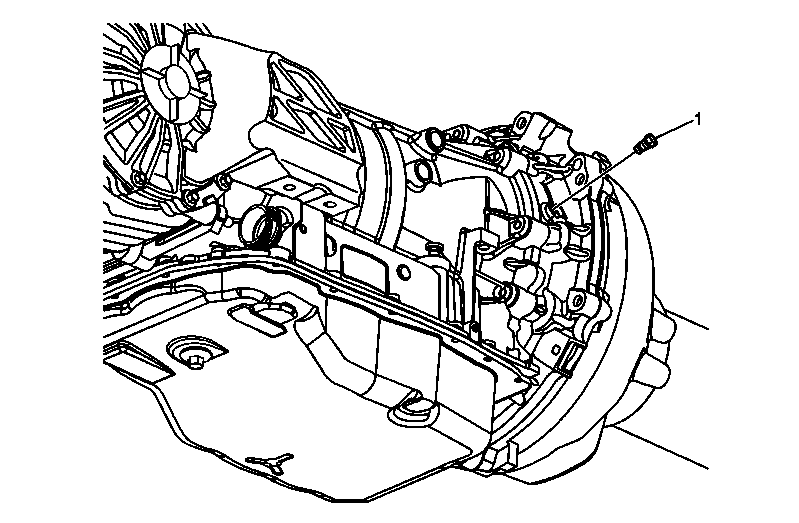

Fig 1: Identifying Oil Pressure Test Plug

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Oil Pressure Test Plug CAUTION: Refer to Fastener Caution . Clean the surrounding area around the oil pressure test plug. Check the transmission fluid level. Refer to Transmission Fluid Level and Condition Check , and Transmission Fluid Fill Procedure . Tighten 11 N.m (97 lb in)
