Automatic Transmission Fluid Pan Drain Plug Replacement

WARNING: This page is about a different variant/trim than selected.

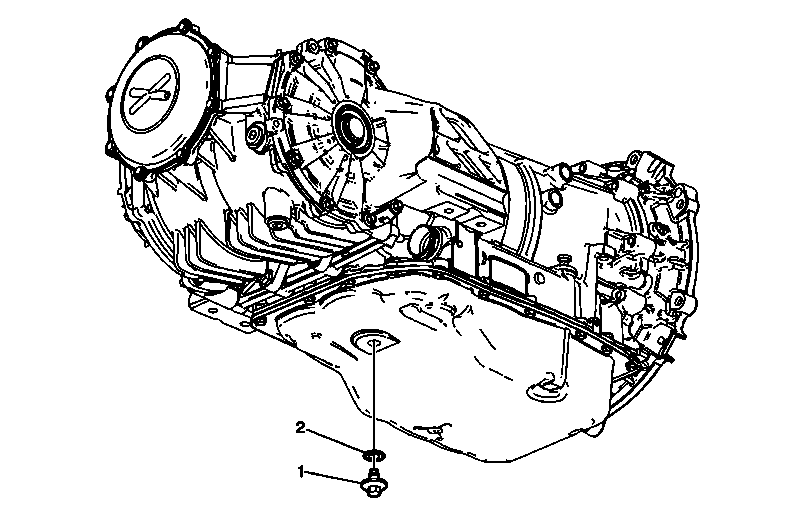

Fig 1: Replacing Automatic Transmission Fluid Pan Drain Plug

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fluid Drain Plan Plug CAUTION: Refer to Component Fastener Tightening Caution . Clean the surrounding area around the fluid drain plug. Check the transmission fluid level. Refer to Transmission Fluid Level and Condition Check , and Transmission Fluid Fill Procedure . Tighten 25 N.m (18 lb ft)
2	Fluid Drain Plan Plug Seal
