Console Replacement

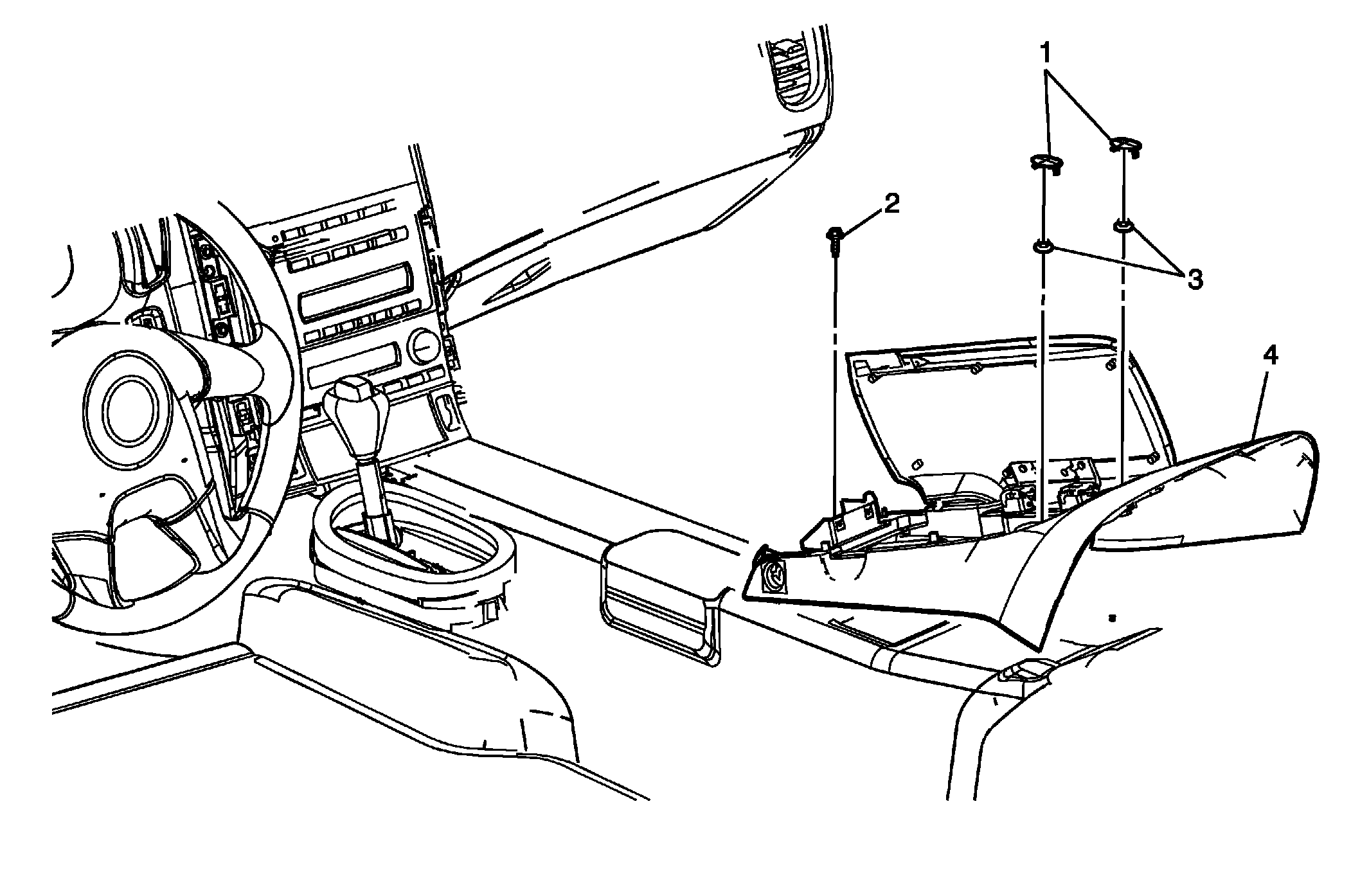

Fig 1: Console & Components
GM1470913Courtesy of GENERAL MOTORS COMPANY
Console Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
  2. Remove the center console trim plate. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
1 Front Floor Console Compartment Filler (Qty: 2)
2 Front Floor Console Bolt (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (106 lb in)
3 Front Floor Console Nuts (Qty: 2)
Tighten
10 N.m (88 lb in)
4 Front Floor Console Assembly
TIP:  Disconnect the electrical connectors.
