Roof Rear Panel Replacement

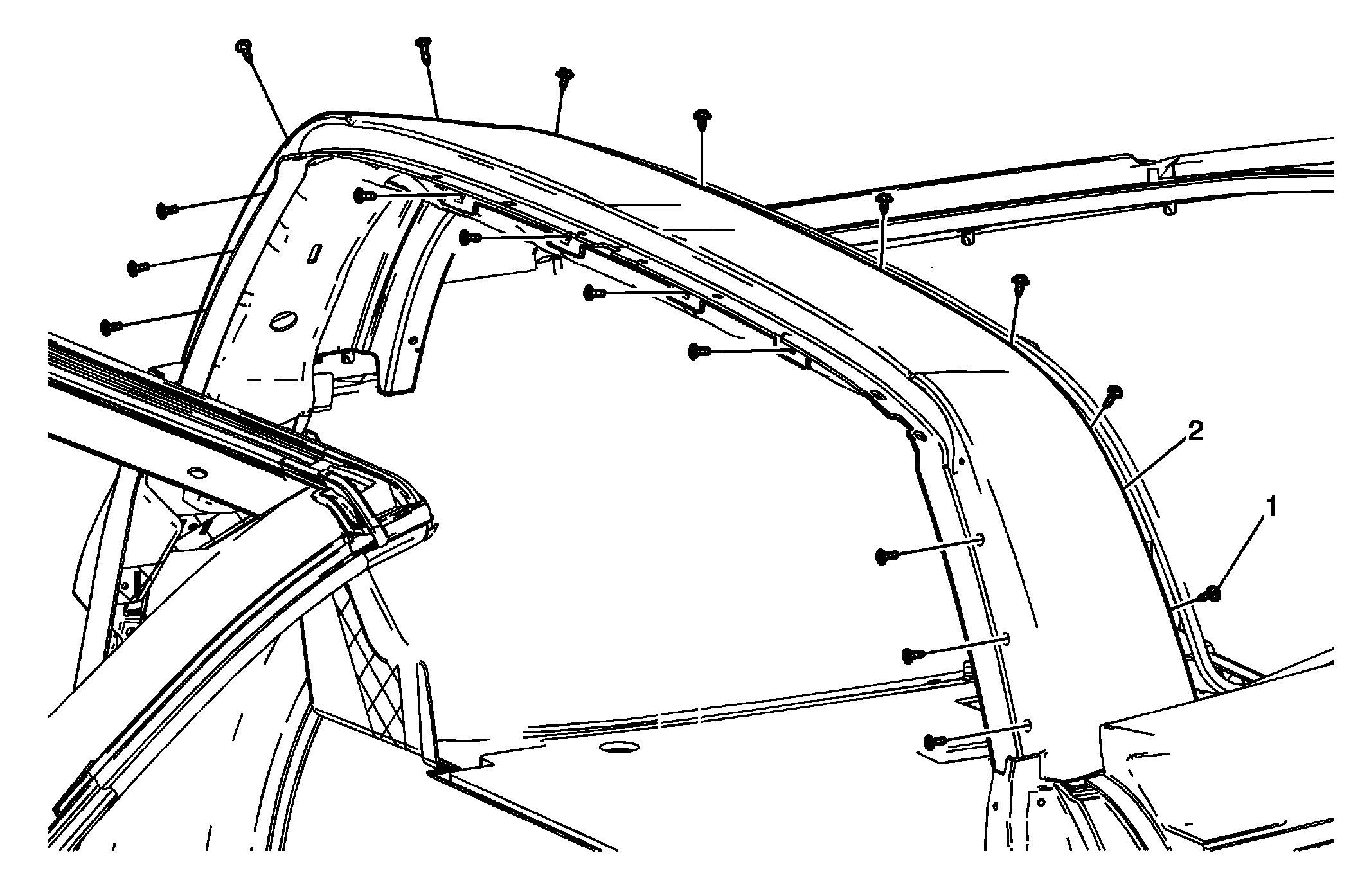

Fig 1: View Of Roof Panel & Screws
GM1586303Courtesy of GENERAL MOTORS COMPANY
Roof Rear Panel Replacement

Callout Component Name
1 Rear Roof Panel Screws (Qty: 19)
CAUTION:

Refer to Fastener Caution .


TIP:  Remove lift off panel.
Tighten
10 N.m (89 lb in)
2 Rear Roof Panel
