Hood Rear Seal Replacement

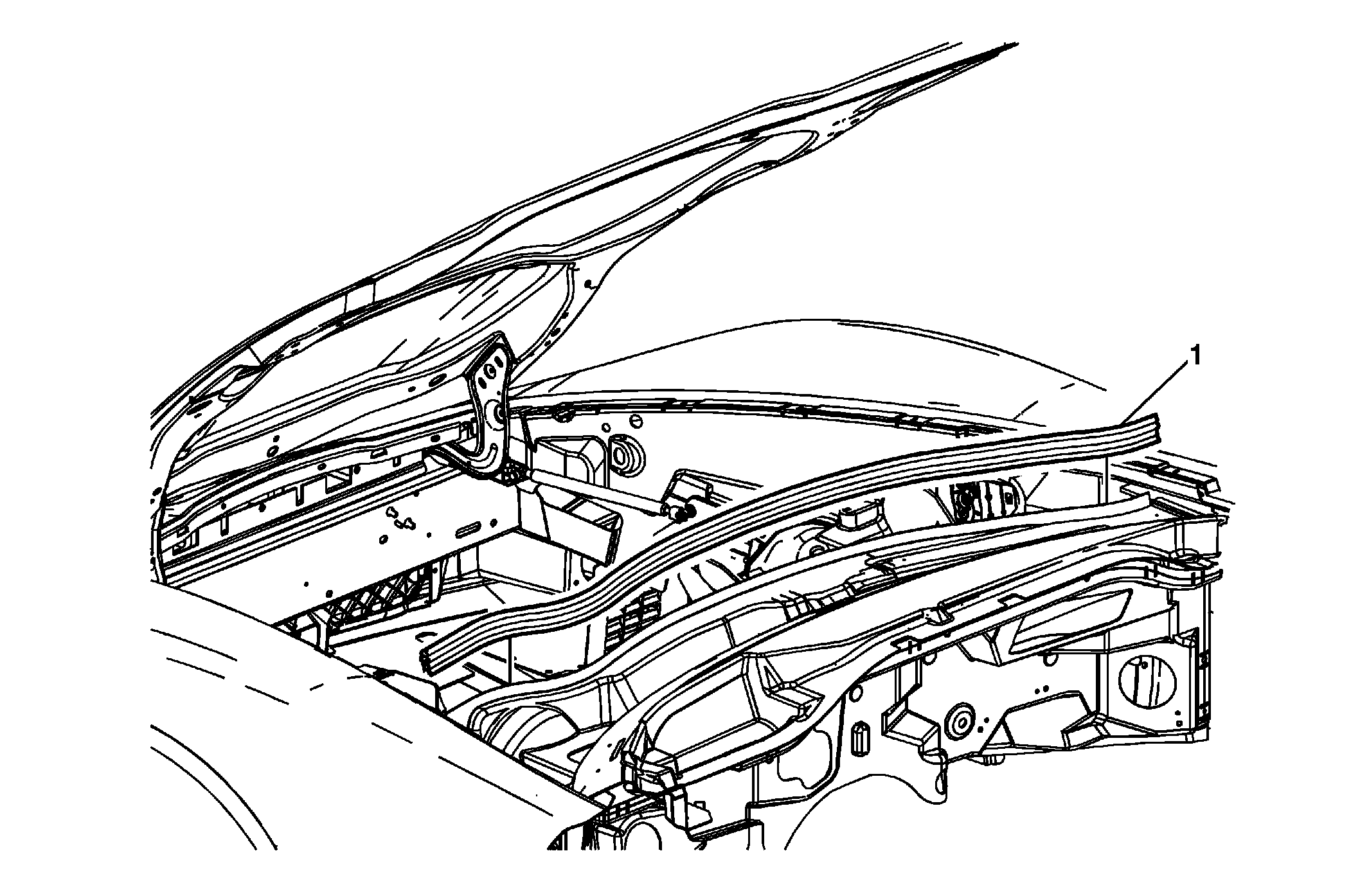

Fig 1: View Of Hood Rear Seal
GM1701344Courtesy of GENERAL MOTORS COMPANY
Hood Rear Seal Replacement

Callout Component Name
1 Hood Rear Seal
TIP:  Clean the seal to fender contact surface before installing.
