Hood Front Seal Replacement

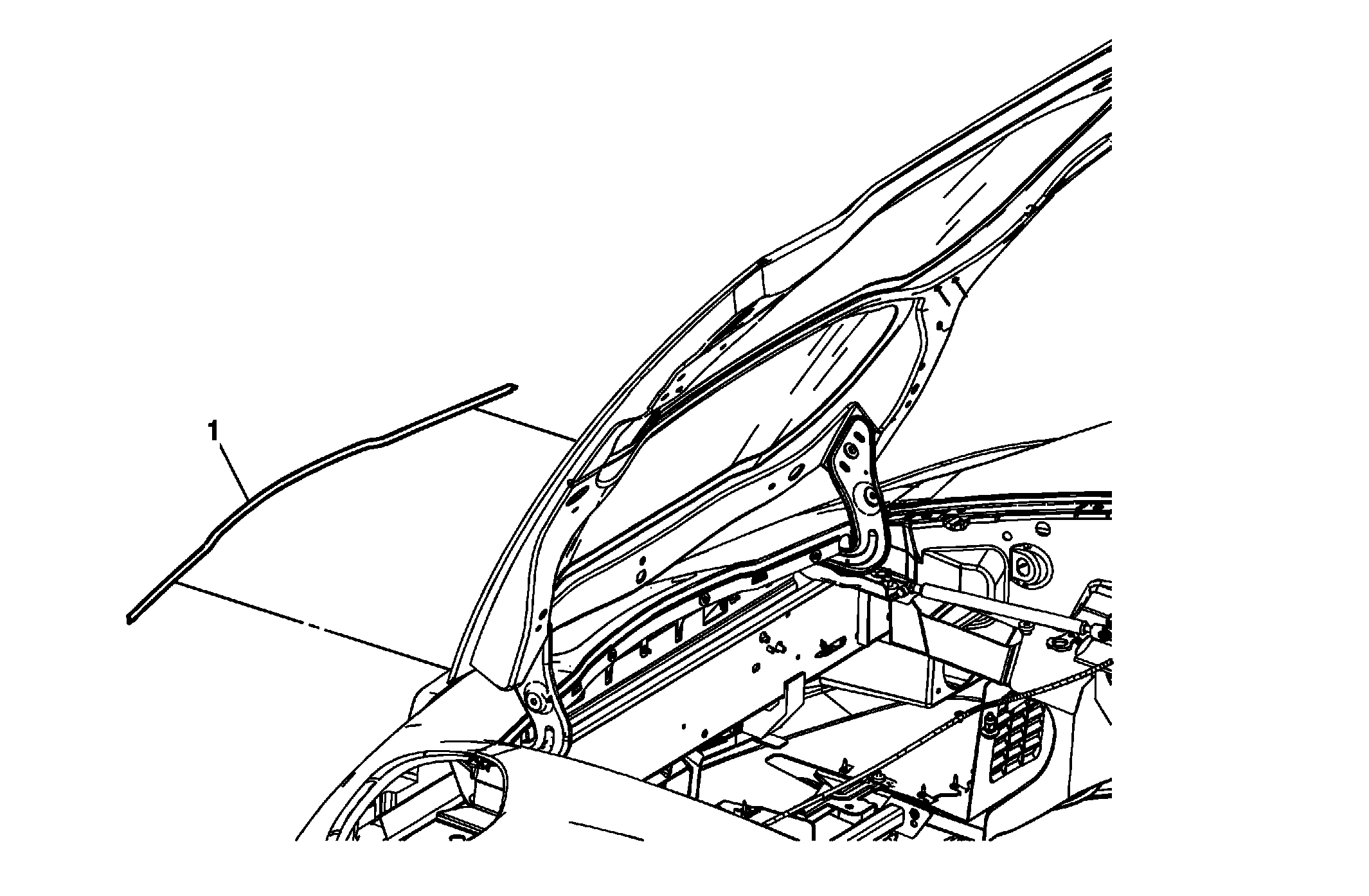

Fig 1: View Of Hood Front Seal
GM1701347Courtesy of GENERAL MOTORS COMPANY
Hood Front Seal Replacement

Callout Component Name
1 Hood Front Seal
TIP:  Clean the seal to fascia contact surface before installing.
