Fuel Tank Filler Pipe Housing Replacement

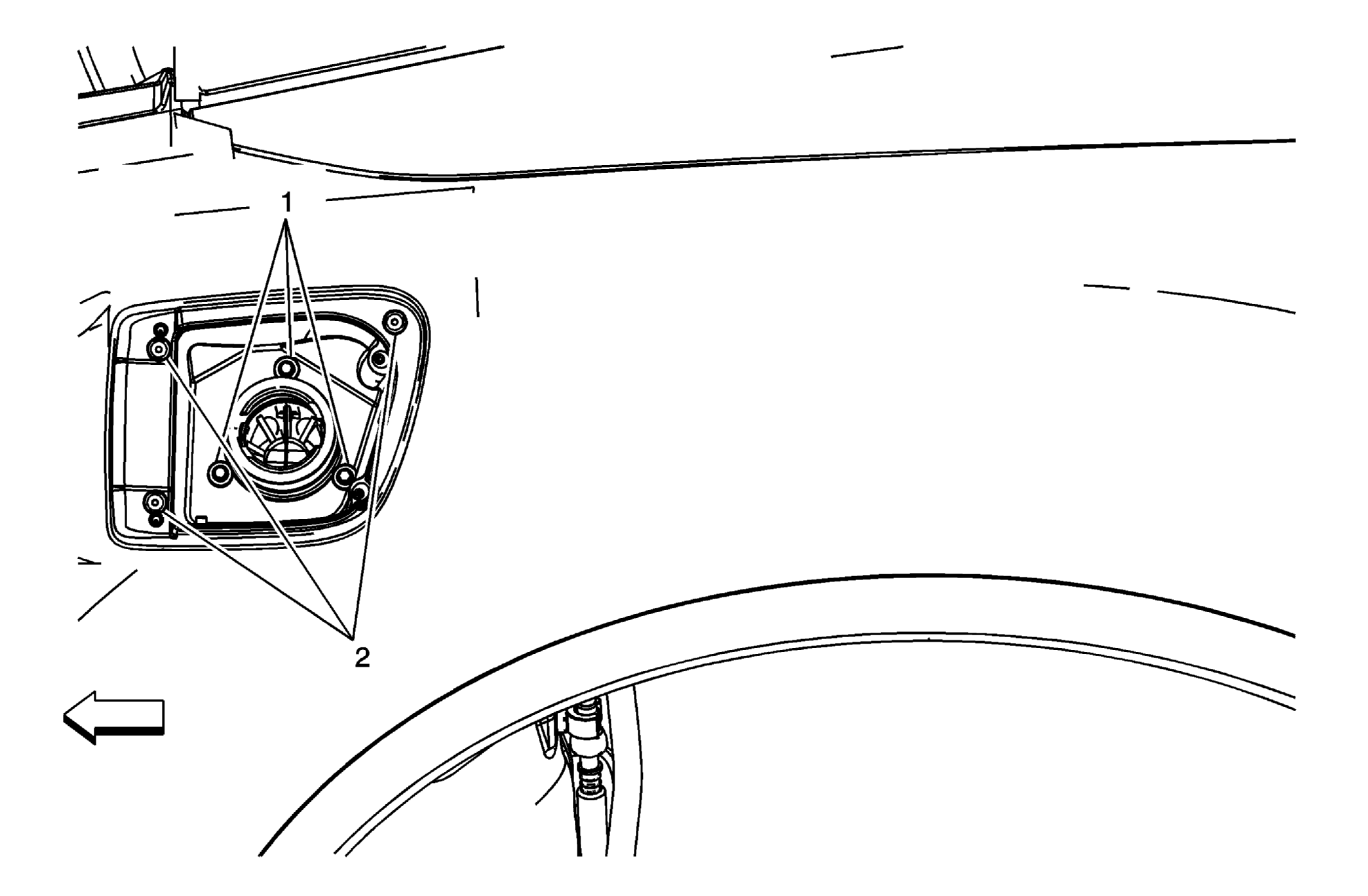

Fig 1: View Of Fuel Filler Pocket & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel filler door. Refer to Fuel Tank Filler Door Replacement . Remove the left rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
1	Fuel Filler Pocket Screws (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Fuel Filler Pocket TIP: The pocket will be removed by pulling the filler neck back and slipping the pocket out from between the neck and the body panel. A ground strap riveted to the pocket filler and bolted to the frame will need to be released before attempting the removal.

Callout

Component Name

Preliminary Procedures

Remove the fuel filler door. Refer to Fuel Tank Filler Door Replacement .
Remove the left rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .

Fuel Filler Pocket Screws (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Fuel Filler Pocket
TIP: The pocket will be removed by pulling the filler neck back and slipping the pocket out from between the neck and the body panel. A ground strap riveted to the pocket filler and bolted to the frame will need to be released before attempting the removal.
