Seat Adjuster Switch - Driver (without AAB)

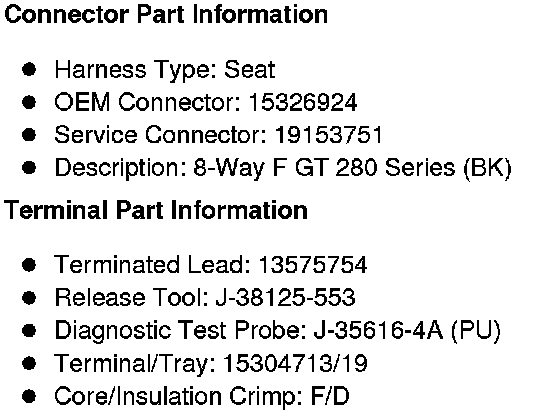

Component Connector End Views

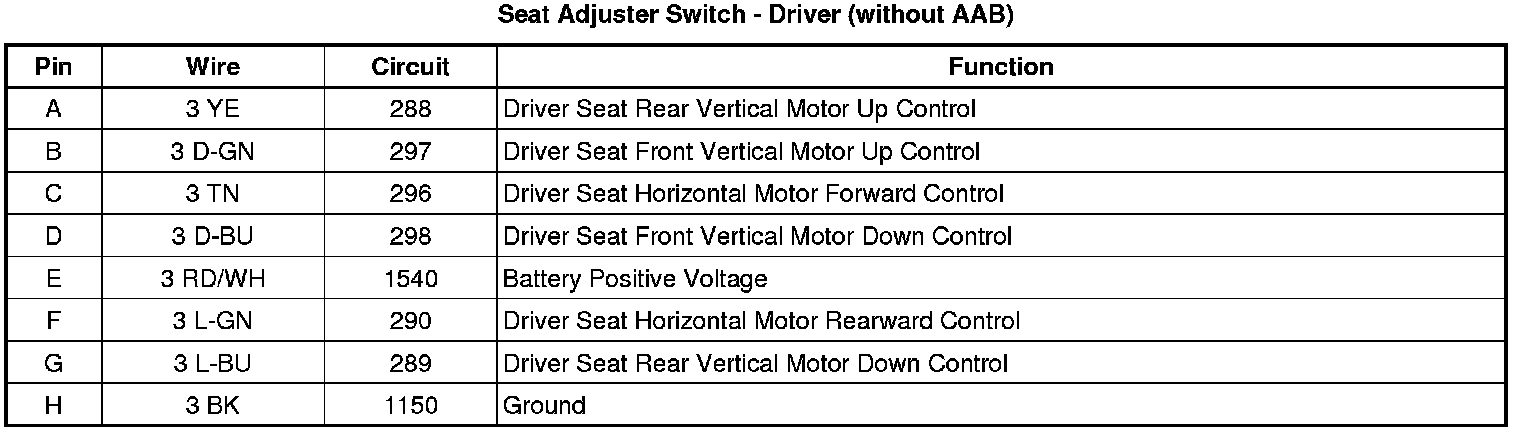

Seat Adjuster Switch - Driver (without AAB)
