Engine Compartment - Fuse Block - Underhood

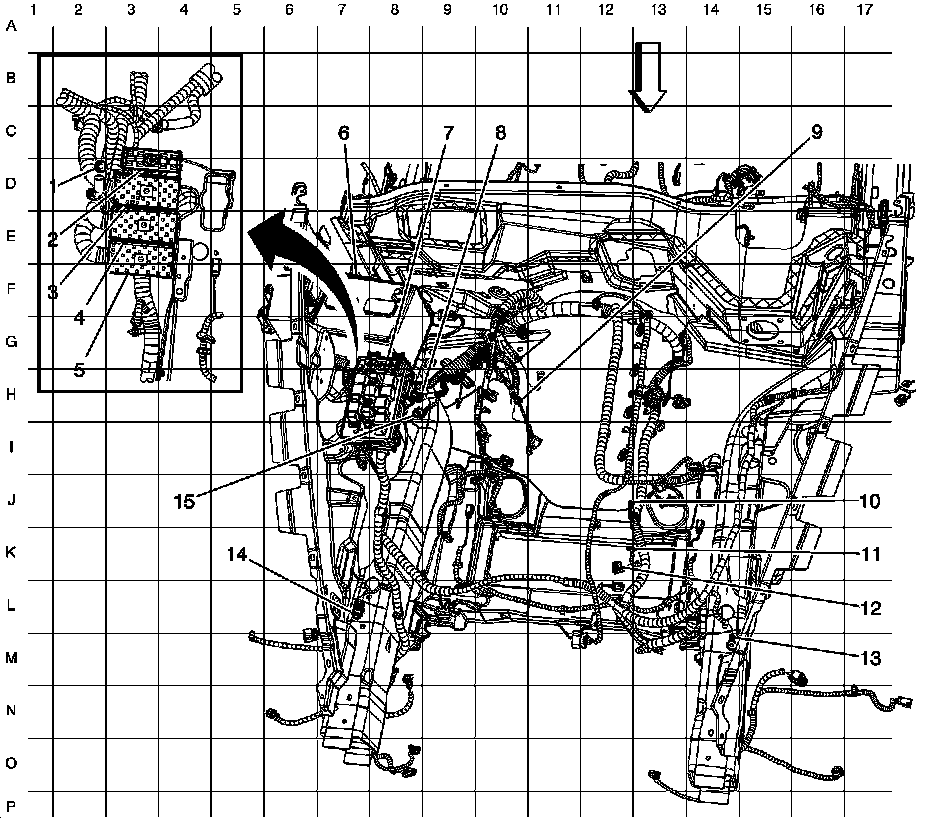

Front of Vehicle/Engine Compartment Component Views

Engine Compartment - Fuse Block - Underhood





1 - Fuse Block- Underhood X5

2 - Fuse Block- Underhood X4

3 - Fuse Block- Underhood X3

4 - Fuse Block- Underhood X2

5 - Fuse Block- Underhood X1

6 - Battery (LS3 without Z52)

7 - Fuse Block- Underhood

8 - G104

9 - G106 (Engine Block)

10 - G107 (Engine Block)

11 - G105 (Engine Block)

12 - X103

13 - G101

14 - G102

15 - G103
