Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

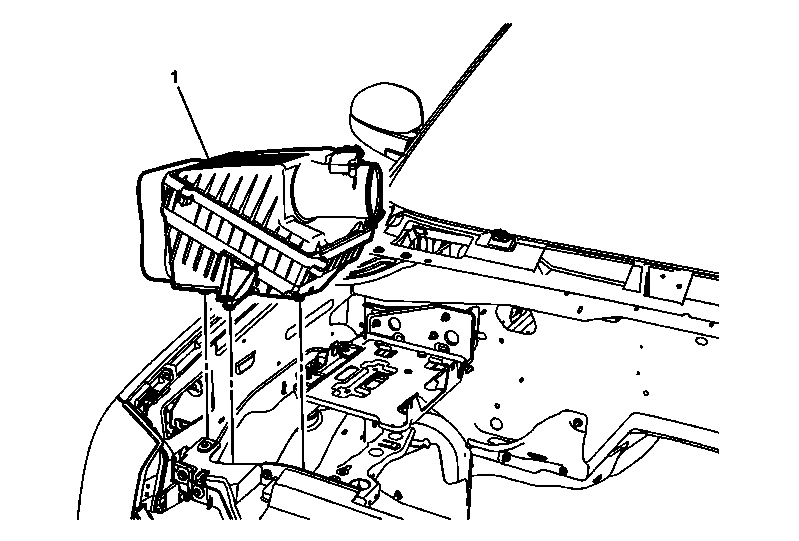

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Disengaged the air cleaner studs from the rubber grommets by pulling upwards. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Air Cleaner Assembly

Procedure

Disengaged the air cleaner studs from the rubber grommets by pulling upwards.
Transfer parts as necessary.
