Brake Pressure Modulator Valve Replacement

WARNING: This page is about a different car, the 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Suburban, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

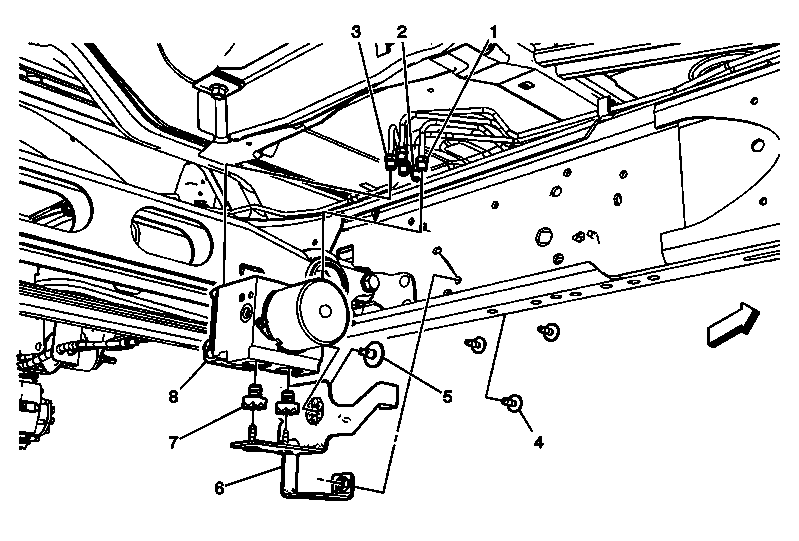

Fig 1: Brake Pressure Modulator Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . CAUTION: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM. Preliminary Procedures Turn the ignition switch to the OFF position. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove any dirt and debris from the area of the brake pressure modulator valve (BPMV) assembly. Disconnect the electronic brake control module (EBCM) electrical connector.
1	BPMV Inlet Brake Pipe Fitting (Qty: 2) CAUTION: Refer to Fastener Caution . TIP: Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten 32 N.m (24 lb ft)
2	BPMV Outlet Brake Pipe Fitting - Front (Qty: 2) TIP: Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten 18 N.m (13 lb ft)
3	BPMV Outlet Brake Pipe Fitting - Rear (Qty: 2) TIP: Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten 18 N.m (13 lb ft)
4	BPMV Bracket Bolt (Qty: 3) Tighten 22 N.m (16 lb ft)
5	BPMV Bolt Tighten 10 N.m (89 lb in)
6	BPMV Bracket Procedure Inspect the BPMV mounting bracket grommet for damage and replace, if necessary.
7	BPMV Insulator (Qty: 2) Procedure Inspect the BPMV insulators for damage and replace, if necessary.
8	BPMV Assembly Procedure If necessary, remove the EBCM from the BPMV. Refer to Electronic Brake Control Module Replacement . After the installation is complete, bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed . If installing a new EBCM, program the EBCM. Refer to Electronic Brake Control Module Programming and Setup . Calibrate the brake pressure sensor. Refer to Electronic Brake Control Module Programming and Setup .
