Suction Hose Replacement (W/O C69)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Suction Hose Replacement (W/O C69)

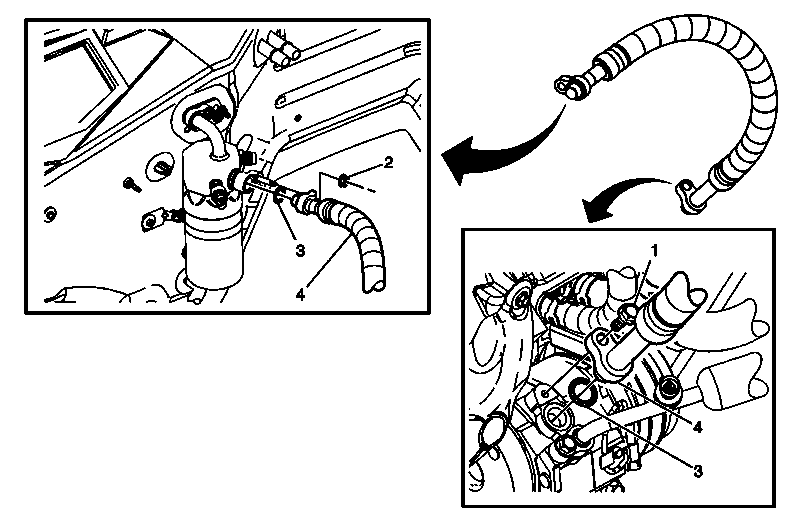

| Callout | Component Name |
|---|---|
| Preliminary Procedure Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Non-HP2) , Refrigerant Recovery and Recharging (HP2) . |
|
| 1 | Suction Hose Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Suction Hose Nut Tighten 9 N.m (80 lb in) |
| 3 | Sealing Washer TIP: Remove and discard sealing washer. Refer to Air Conditioning System Seal Replacement . |
| 4 | A/C Suction Hose |
