Instrument Panel Outer Air Outlet Deflector Replacement - Left Side (Except Cadillac)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Outer Air Outlet Deflector Replacement - Left Side (Except Cadillac)

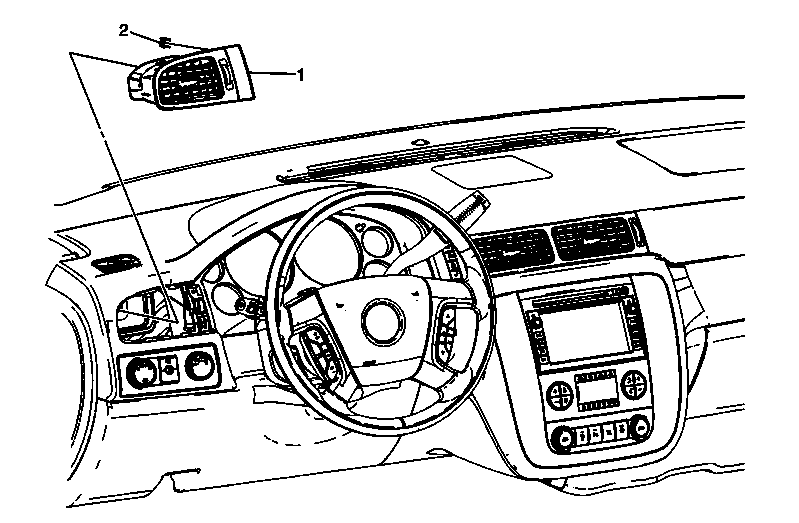

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Air Deflector- Left TIP: Use a flat-bladed plastic trim tool to release the retainer clip on the right side of the deflector, securing the air deflector to the instrument panel. |
| 2 | Retainer Clip (Qty: 1) |
