Instrument Panel Center Trim Panel Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

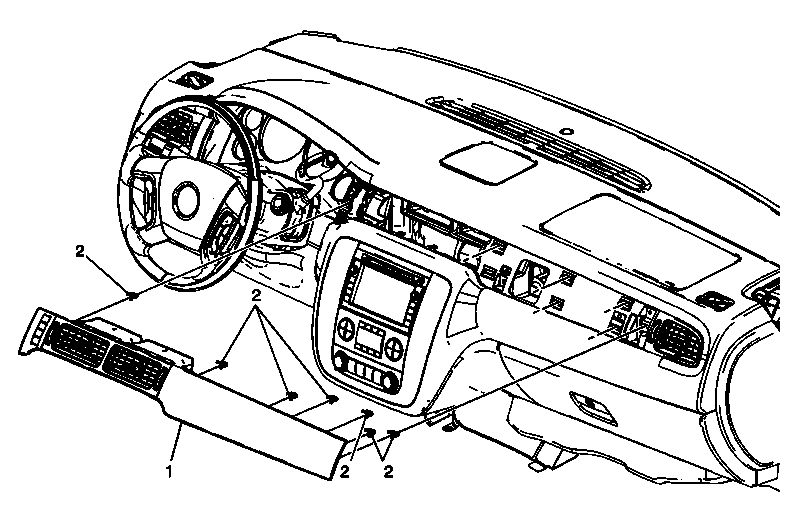

Fig 1: Instrument Panel Center Trim Panel (Except Cadillac)
GM1673760Courtesy of GENERAL MOTORS CORP.
Instrument Panel Center Trim Panel Replacement (Except Cadillac)

Callout Component Name
1 Instrument Panel Center Trim Plate
  1. Use a flat-bladed plastic trim tool in order to release the retainer clips securing the trim plate to the instrument panel.
  2. Disconnect the electrical connections.
2 Retainer Clips (Qty: 8)
