Front Floor Console Side Trim Front Panel Replacement - Right Side (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

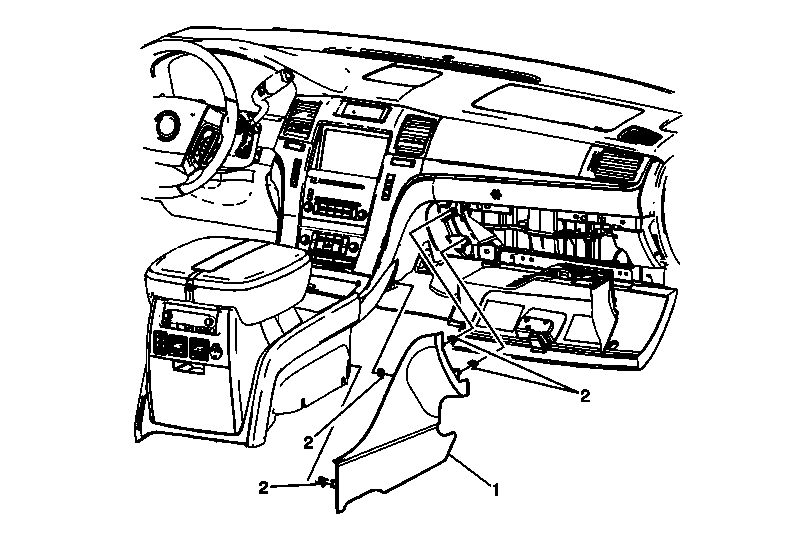

Fig 1: Front Floor Console Side Trim Front Panel - Right Side (Cadillac)
GM2436385Courtesy of GENERAL MOTORS CORP.
Front Floor Console Side Trim Front Panel Replacement - Right Side (Cadillac)

Callout Component Name
Preliminary Procedure
Open the instrument panel compartment door.
1 Front Floor Console Side Trim Front Panel
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the front floor console assembly.
2 Retainer Clips (Qty: 4)
