Floor Console Bezel Replacement (Except Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

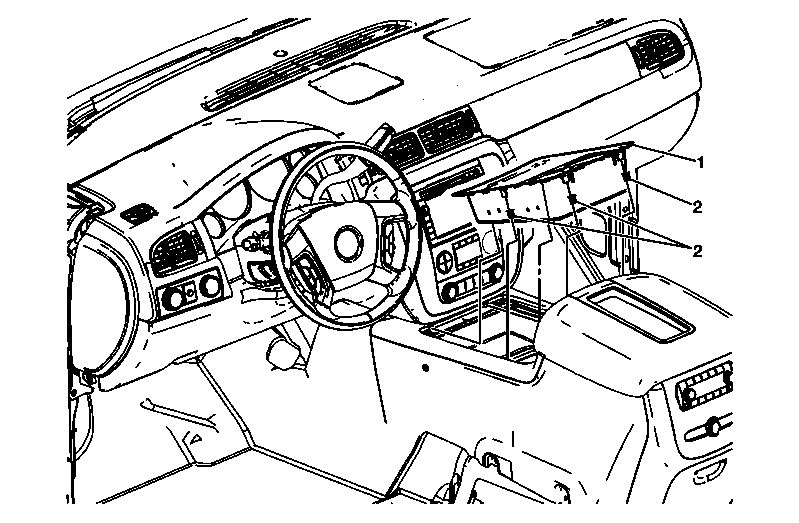

Fig 1: Floor Console Bezel
GM1689904Courtesy of GENERAL MOTORS CORP.
Floor Console Bezel Replacement (Except Cadillac)

Callout Component Name
1 Front Floor Console Bezel Assembly
  1. Use a flat-bladed plastic trim tool to release the retainer clips along the rear edge of the bezel.
  2. Lift the bezel out of the console assembly.
2 Retainer Clips (Qty: 4)
