Front Seat Replacement - Bucket (with HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

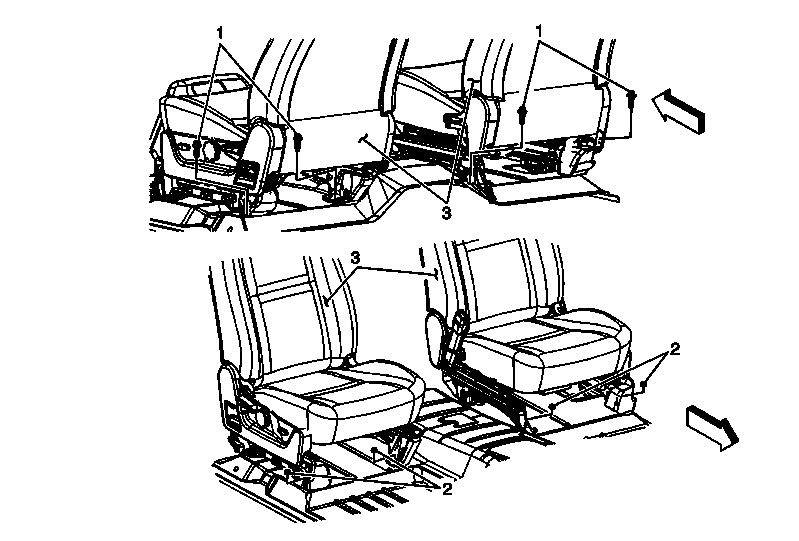

Fig 1: Front Seat Assembly & Components
GM1967646Courtesy of GENERAL MOTORS CORP.
Front Seat Replacement - Bucket (with HP2)

Callout Component Name

Preliminary Procedure

  1. Remove the front seat adjuster covers.
  2. Disconnect the seat belt anchor from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1 Front Seat Assembly Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
90 N.m (66 lb ft)
2 Front Seat Assembly Nut (Qty: 2)
Tighten
55 N.m (41 lb ft)
3 Front Seat Assembly
Procedure
Disconnect the electrical connector.
