Front Bumper Fascia Replacement (Escalade)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

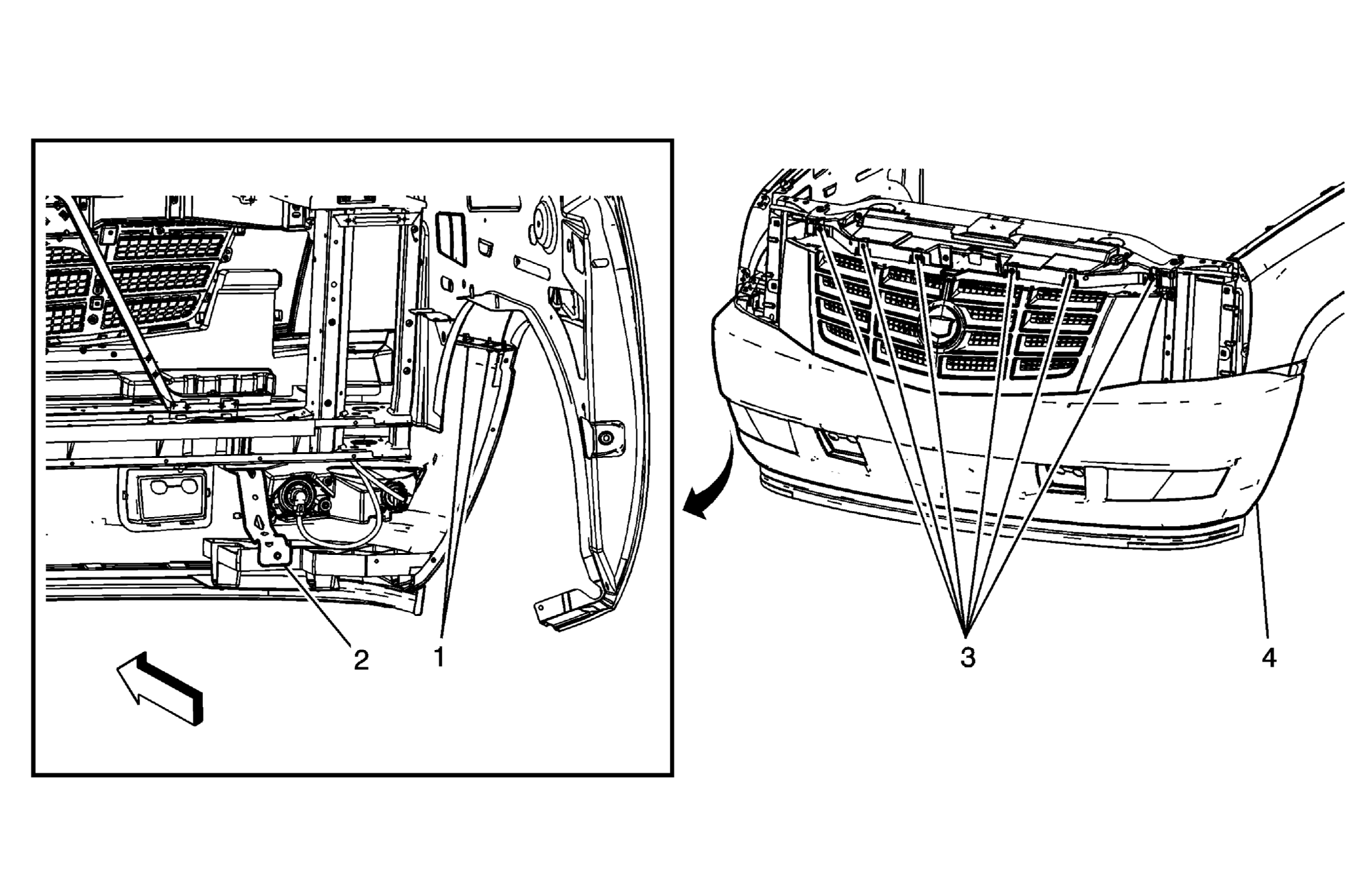

Fig 1: Front Bumper Fascia (Escalade)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator air baffle - upper. Refer to Radiator Air Upper Baffle and Deflector Replacement (Yukon) , Radiator Air Upper Baffle and Deflector Replacement (Cadillac) . Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement - Left Side , and Front Wheelhouse Liner Replacement - Right Side .
1	Front Fender Bracket Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Fascia to Impact Bar Brace Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
3	Front Fascia to Radiator Core Support Bolt (Qty: 6) Tighten 6 N.m (53 lb in)
4	Front Fascia TIP: Disconnect the fog lamp connectors before attempting removal.
