Front Wheel Bearing and Hub Replacement

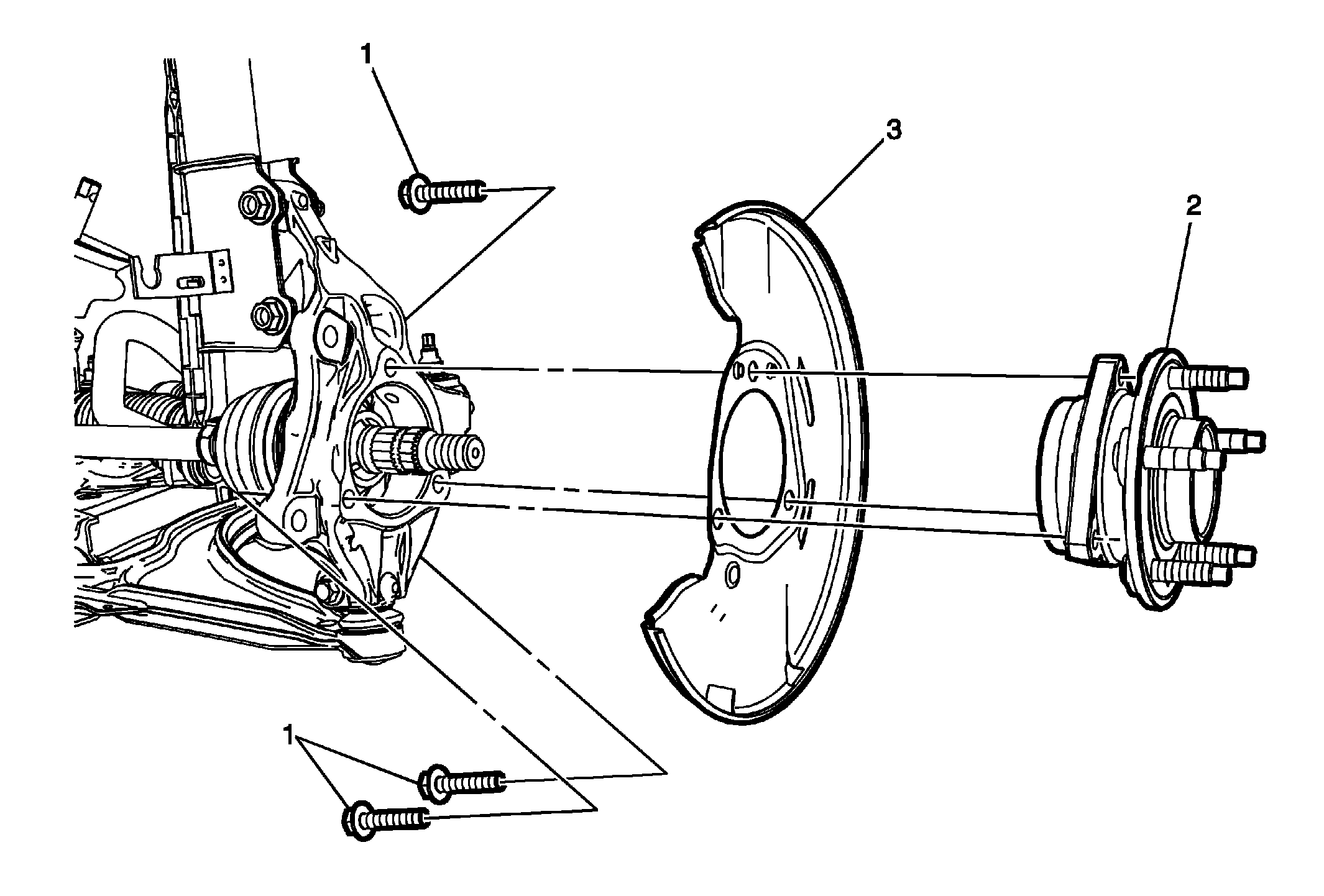

Fig 1: Front Wheel Bearing and Hub

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement . Remove the front brake rotor. Refer to Front Brake Rotor Replacement . Remove the wheel drive shaft nut from the wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
1	Front Wheel Hub Bolt (Qty: 3) WARNING: Refer to Torque-to-Yield Fastener Warning . CAUTION: Refer to Fastener Caution . Procedure Remove and discard the bolt and replace with NEW only. Tighten First Pass: 100 N.m (74 lb ft). Final Pass: additional 60 degrees.
2	Front Wheel Hub.
3	Front Brake Shield
