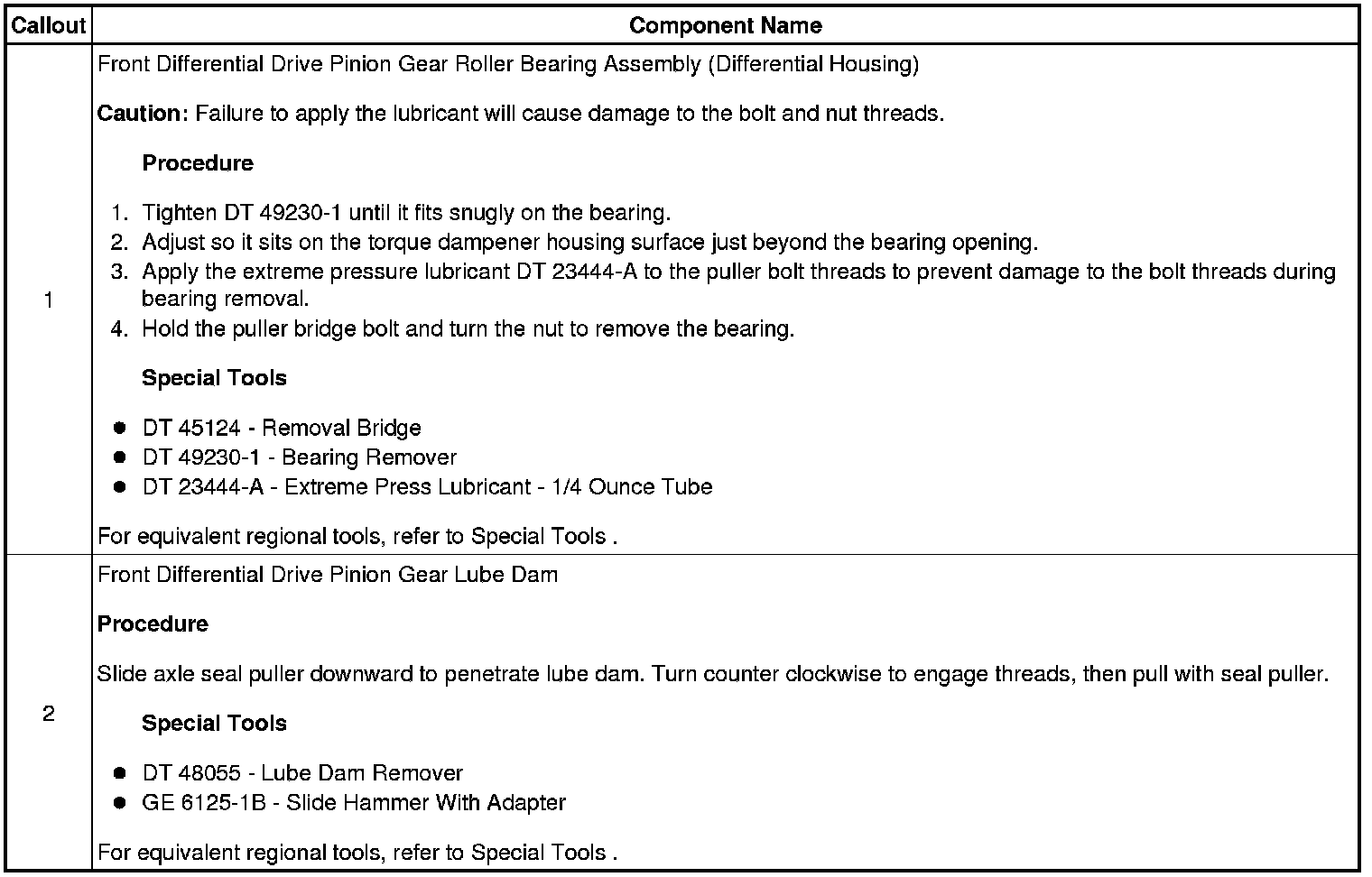

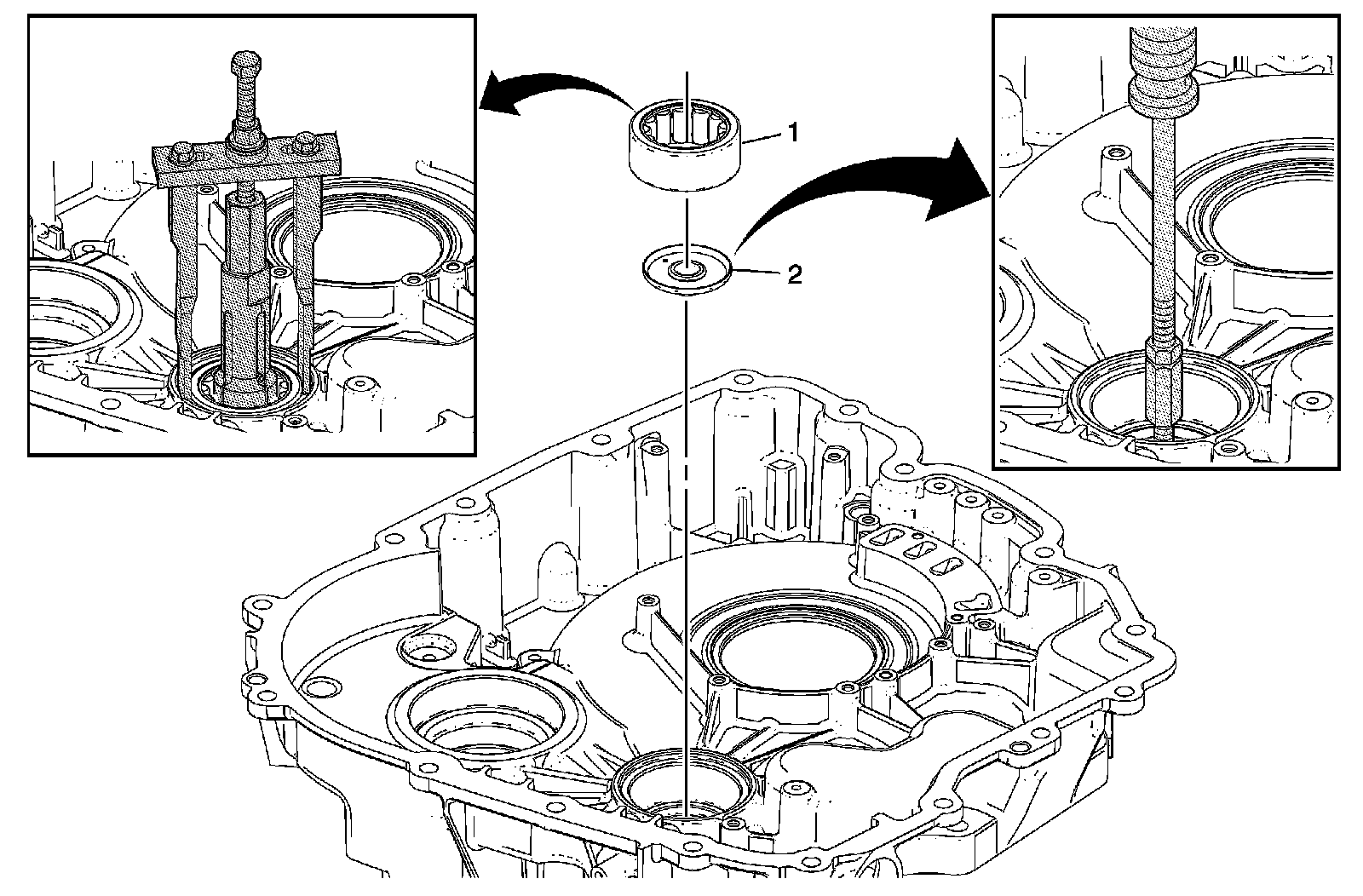

34. Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Removal - Torque Dampener Side




Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Removal - Torque Dampener Side
