Left Rear of Vehicle Harness Routing
Left Rear of Vehicle Harness Routing
Harness Routing Views

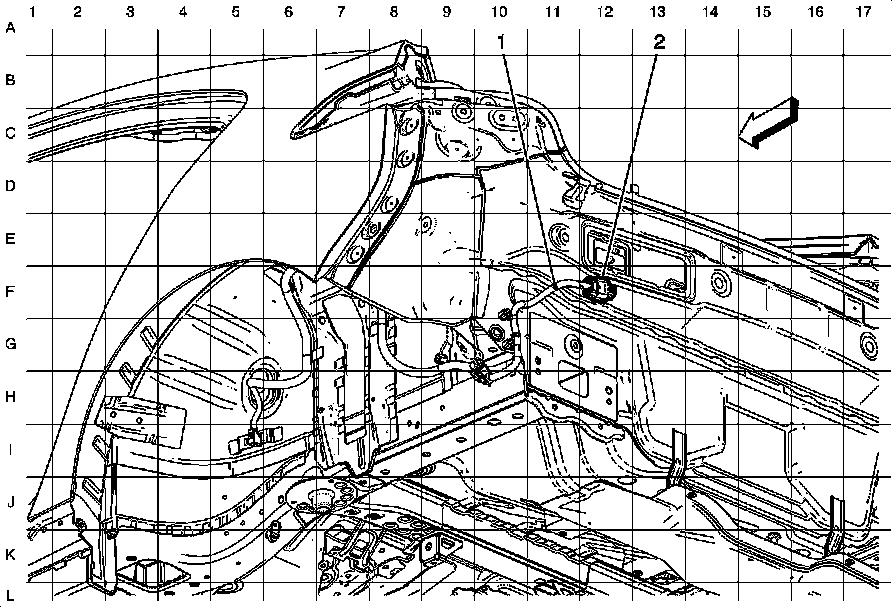

Left Rear of Vehicle Harness Routing
1
- J450
2
- X450 or X451
