Home
>>
Chevrolet
>>
2012
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems
Seat Belt

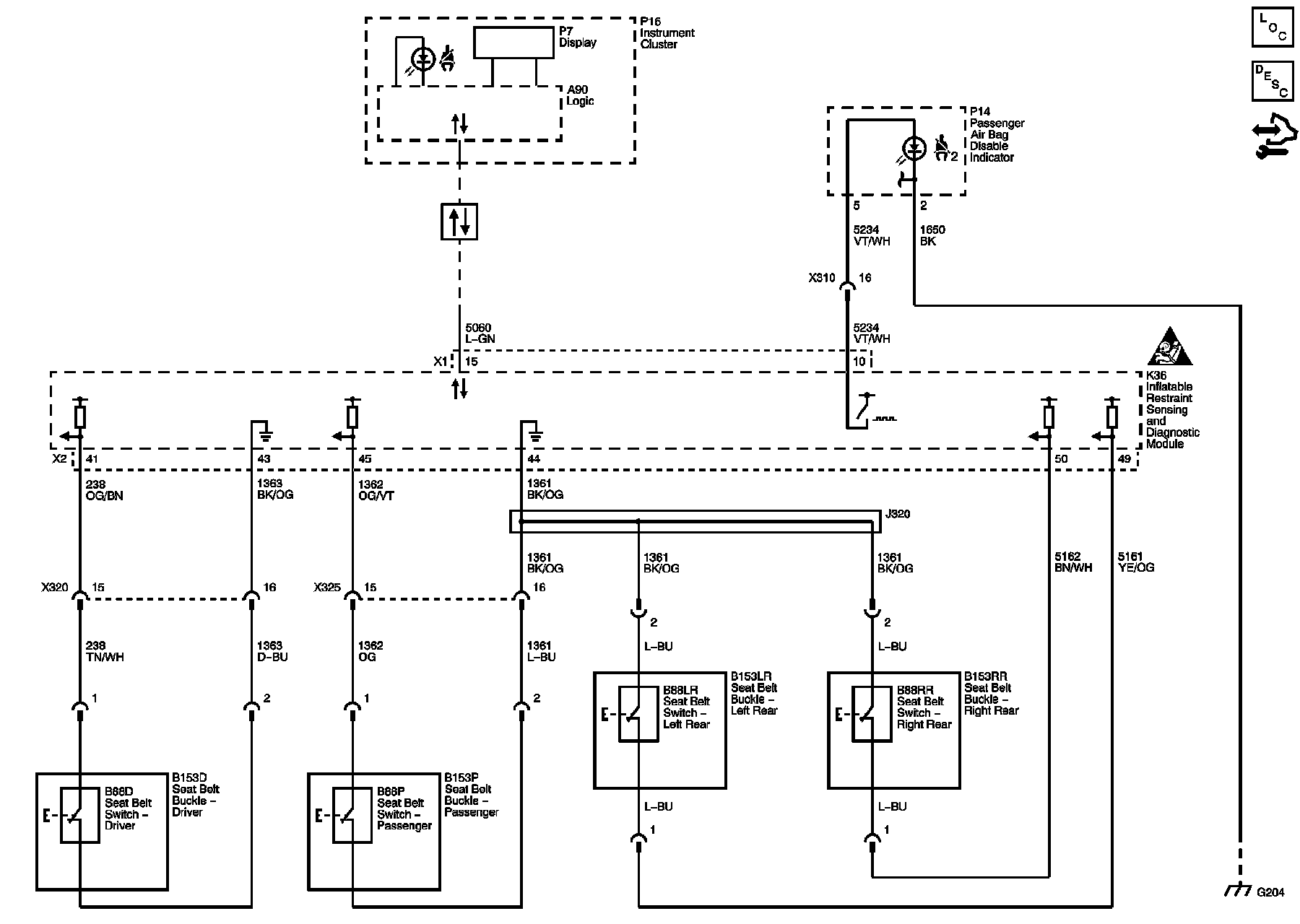

Schematics
Seat Belts
