Outside Rearview Mirror Schematics

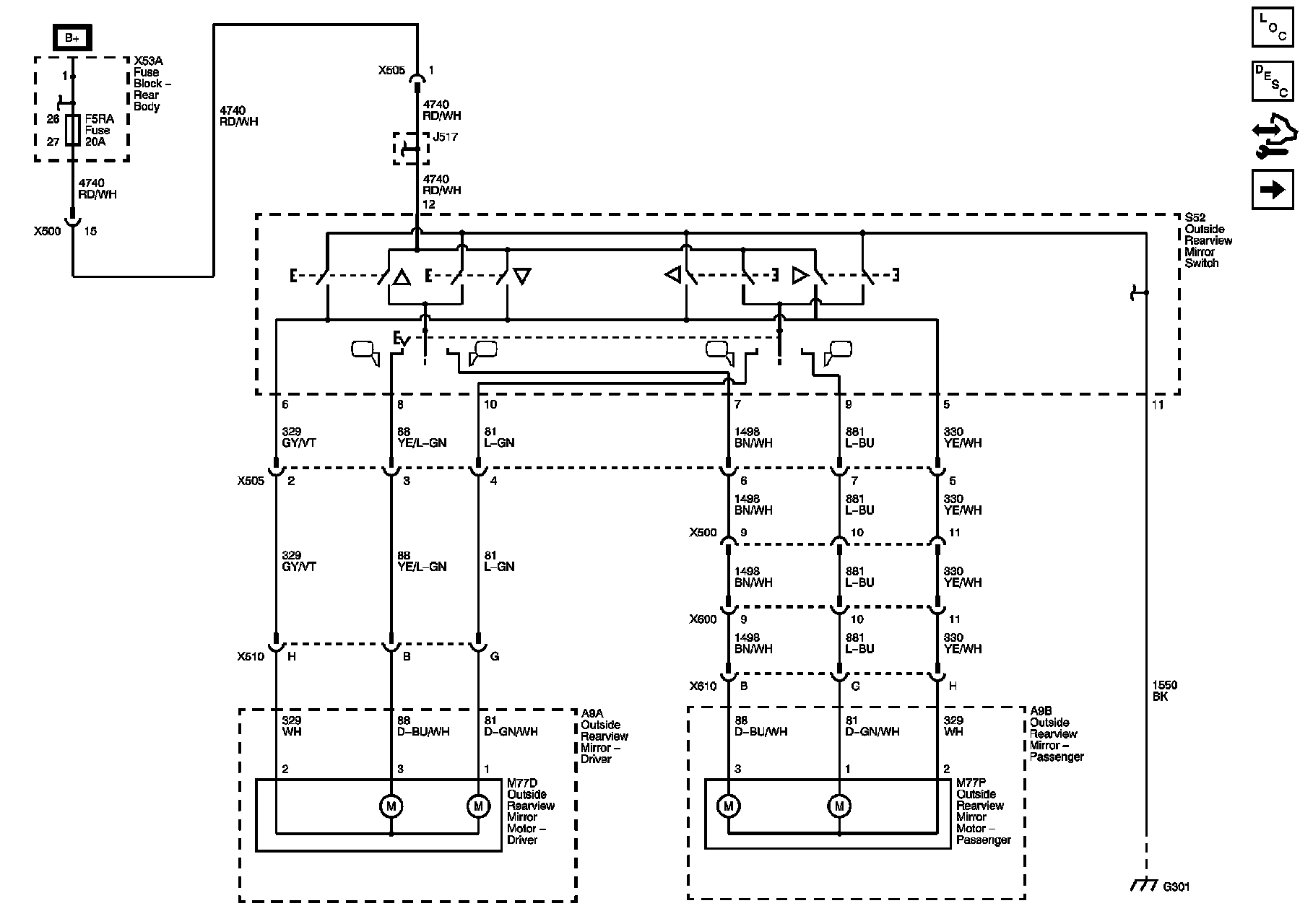

Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics
Directional Controls and Motors
Mirror Heaters
