Body Harness Routing- Right Rear Passenger Compartment

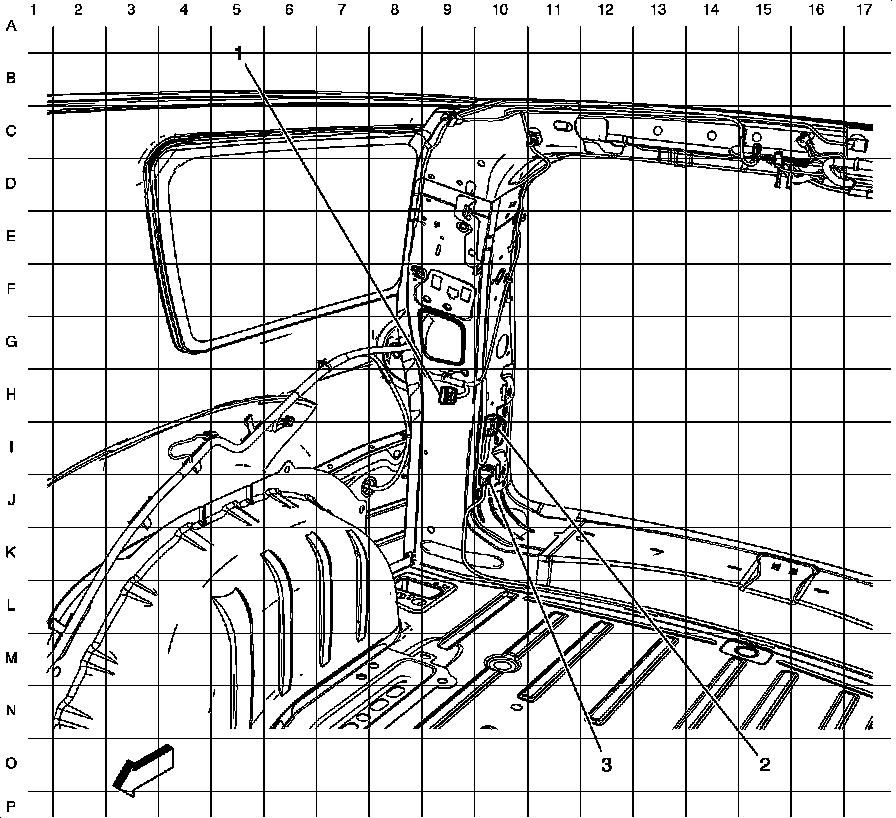

Harness Routing Views

Body Harness Routing- Right Rear Passenger Compartment





1 - X452

2 - X420

3 - X422
